2 Ports

EC17-02-2A FTTH Distribution Box

Overview:

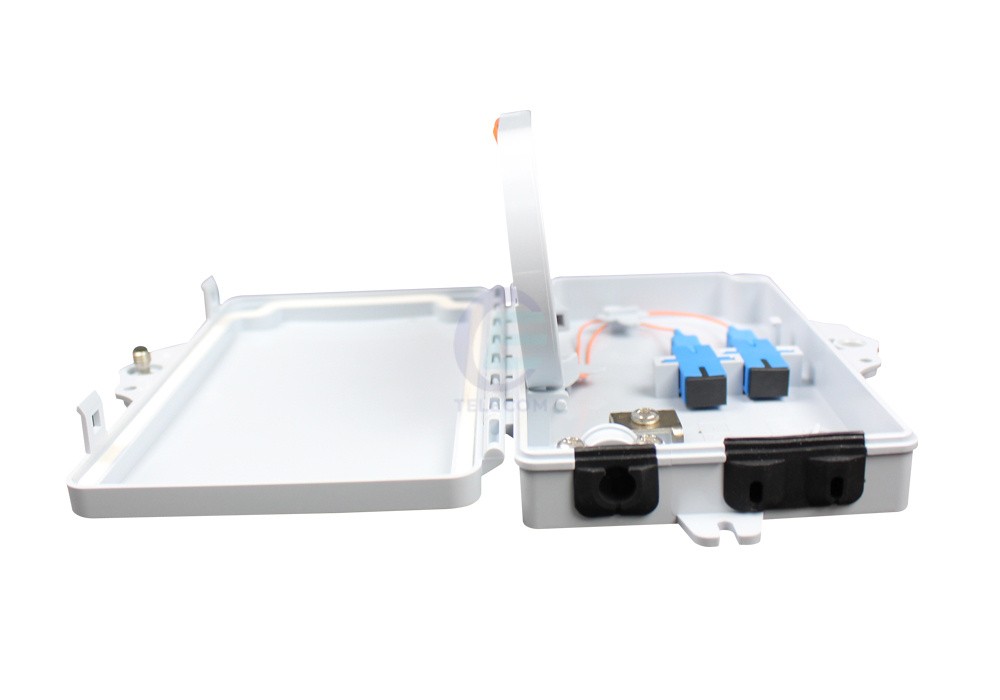

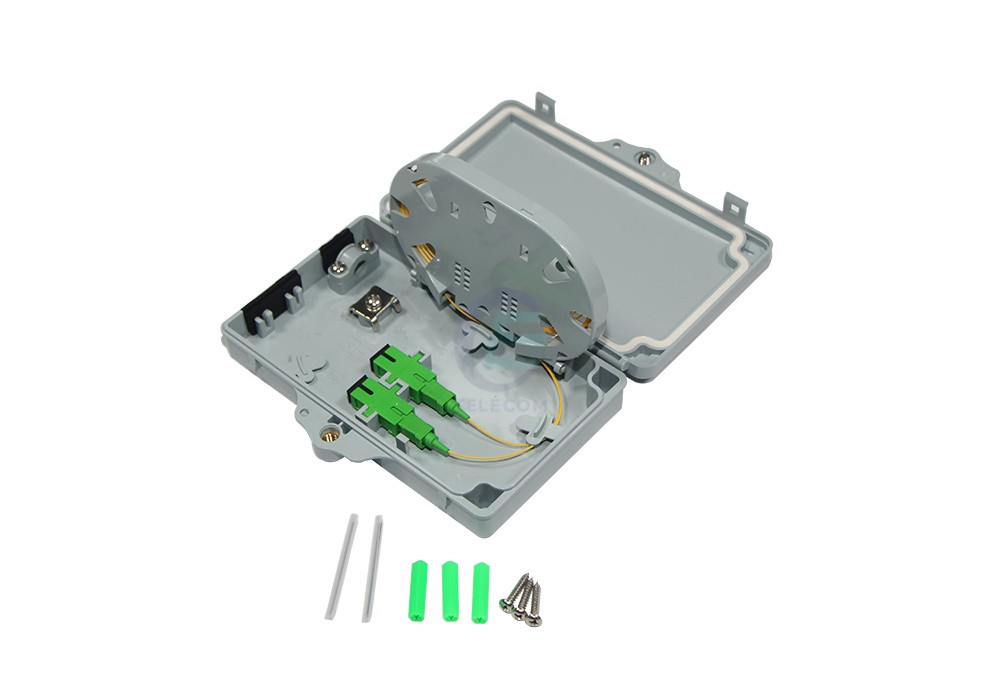

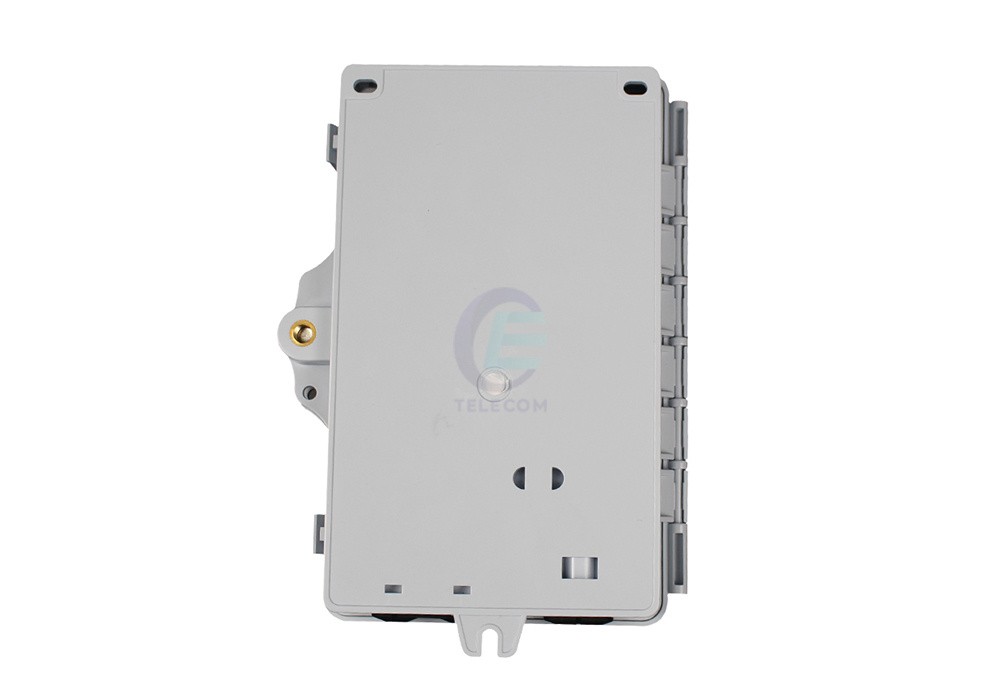

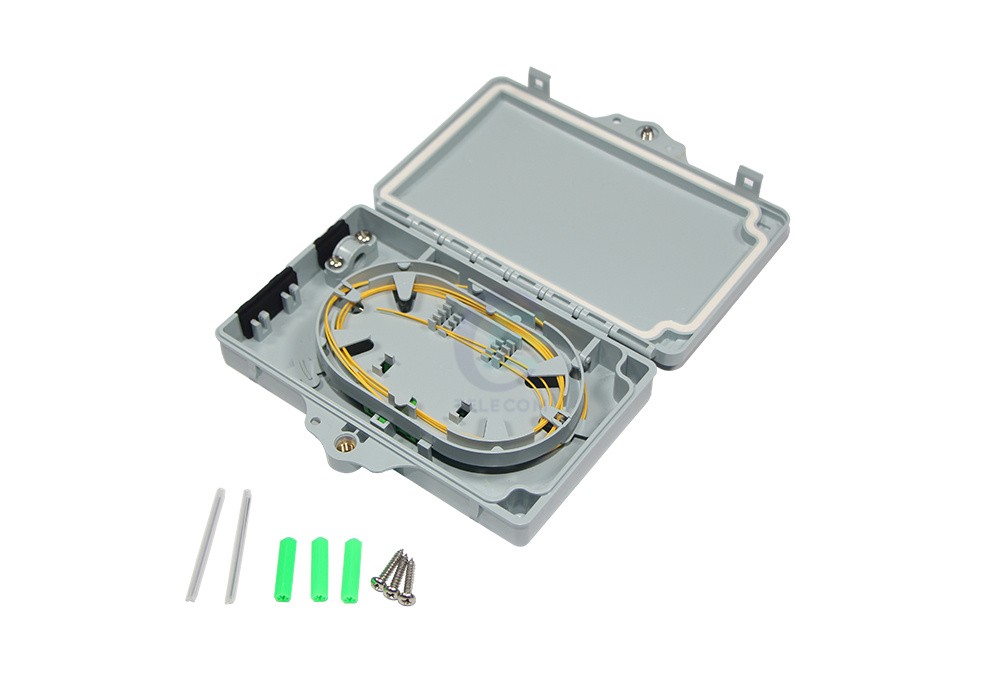

This 2 ports Outdoor Wall Mounted Optical Fiber Distribution Box is used for splicing and termination between indoor SC/ LC/ FC fiber optic cable and pigtails. It is used for wall mounted to connect indoor cable with drop cables.
Click:626

Service Online:

Product Details

Datasheet Download

Features:
• Water-proof design with IP65 Protection level
• Integrated with splice cassette and cable management system
• Manage fibers in a reasonable fibers radius condition
• Easy to maintain
• Fiber bend radius control more than 40mm
• Suitable for the fusion splice or mechanical splice
• 2 ports cable entrance for FTTH Drop Cable

Specifications:

Material: PC+ABS
Dimensions (HxWxD): 170x120x30mm
Max. Capacity:

2 SC or FC simplex adapte

2 LC duplex adapter

Inlet: 1 port
Outlet: 2 ports
Installation way: Wall Mounted
