4 Ports

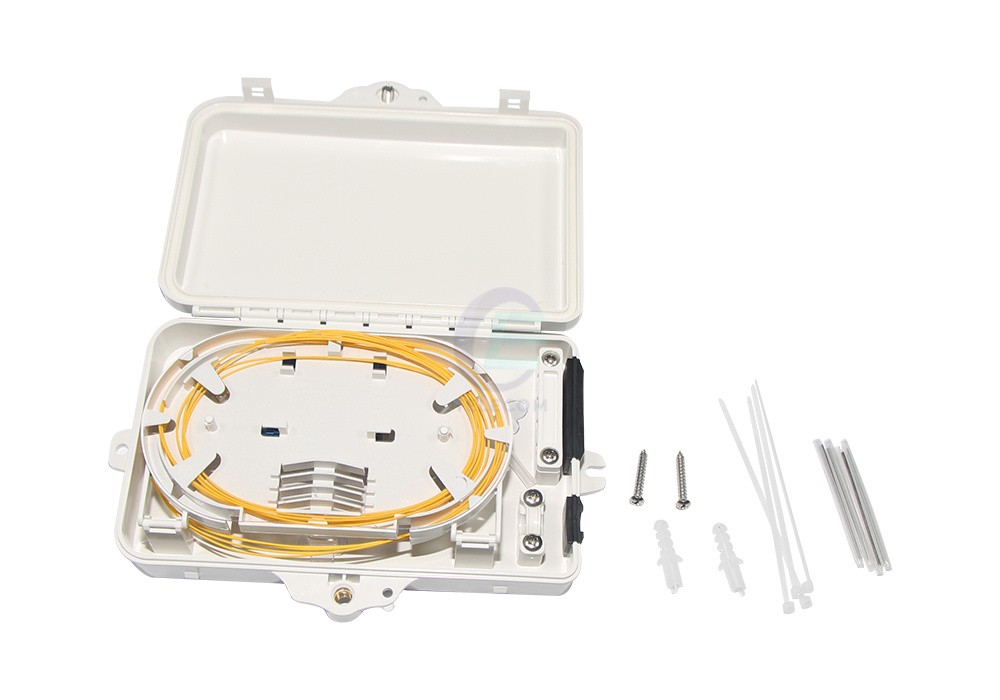

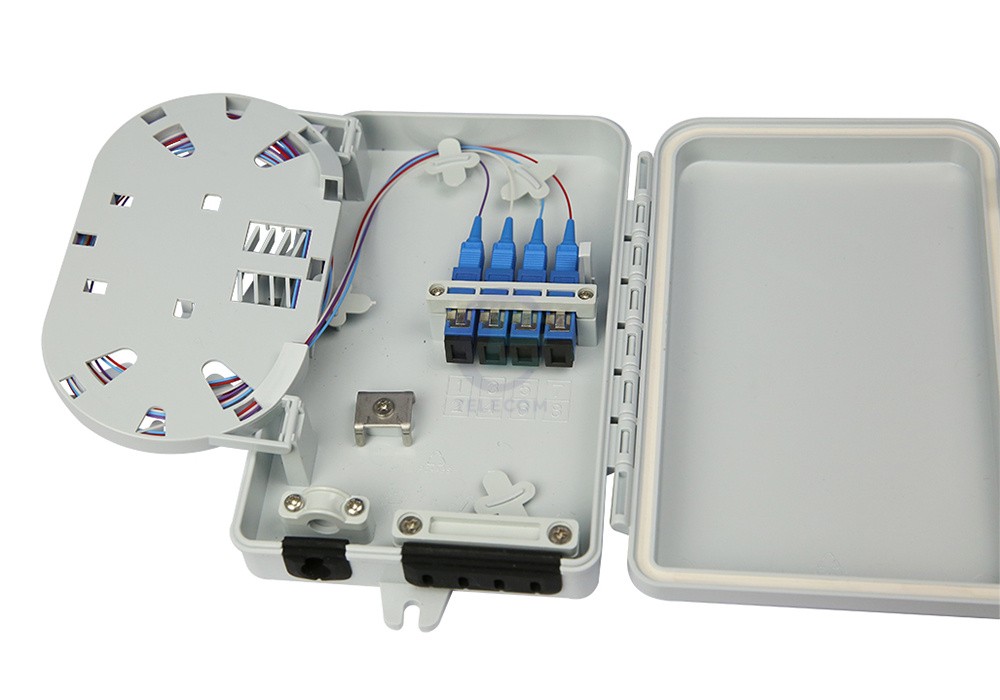

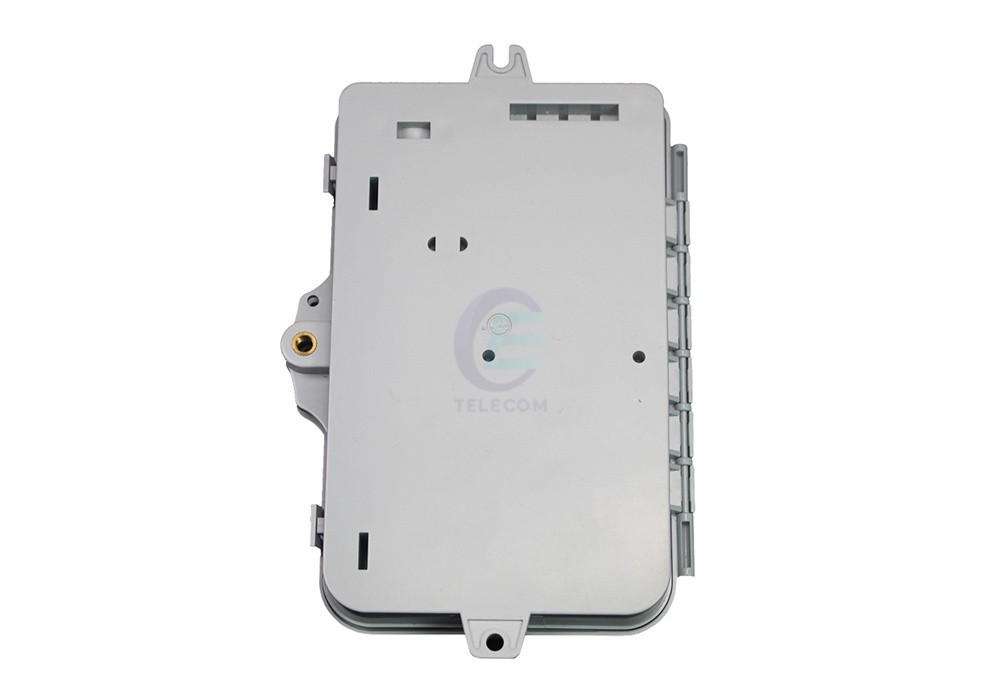

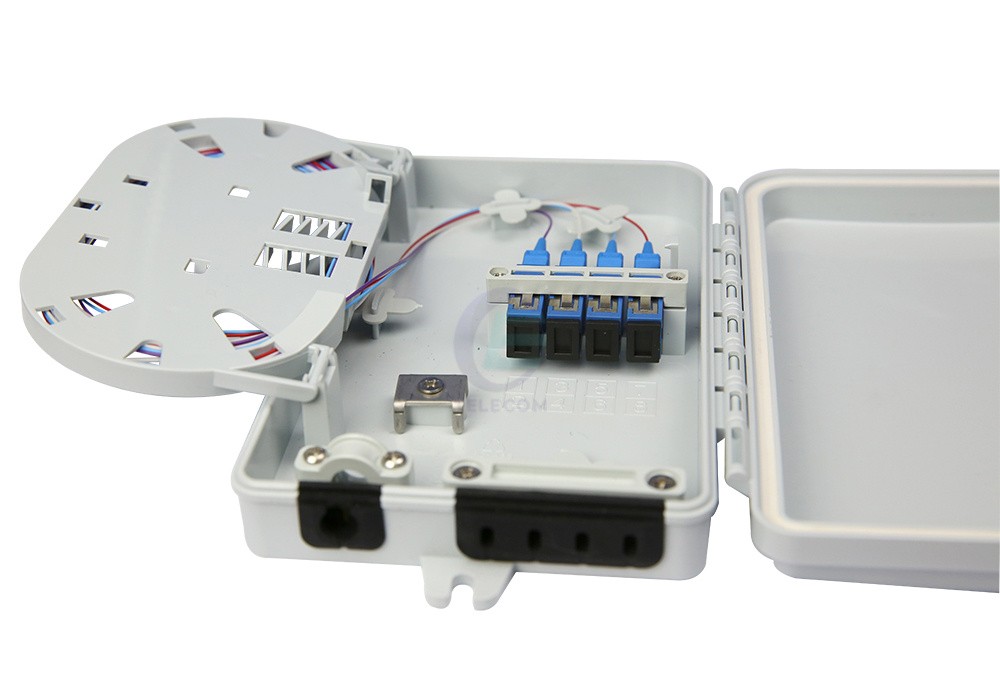

EC17-02-4A FTTH Distribution Box

Overview:
This 4 ports Outdoor Wall Mounted Optical Fiber Distribution Box is used for splicing and termination between indoor SC/ LC/ FC fiber optic cable and pigtails. It is used for wall mounted to connect indoor cable with drop cables.
Click:441

Service Online：

Product Details

Datasheet Download

Features:
• Water-proof design with IP65 Protection level
• Integrated with splice cassette and cable management system
• Manage fibers in a reasonable fibers radius condition
• Easy to maintain and extend the capacity
• Fiber bend radius control more than 40mm
• Suitable for the fusion splice or mechanical splice

• 4 ports cable entrance for FTTH Drop Cable


Specifications:

Material: PC+ABS
Dimensions (HxWxD): 170x120x30mm
Max. Capacity:

4 SC or FC simplex adapter

4 LC duplex adapter

Inlet: 1 port
Outlet: 4 ports
Installation way: Wall Mounted
