16 Ports

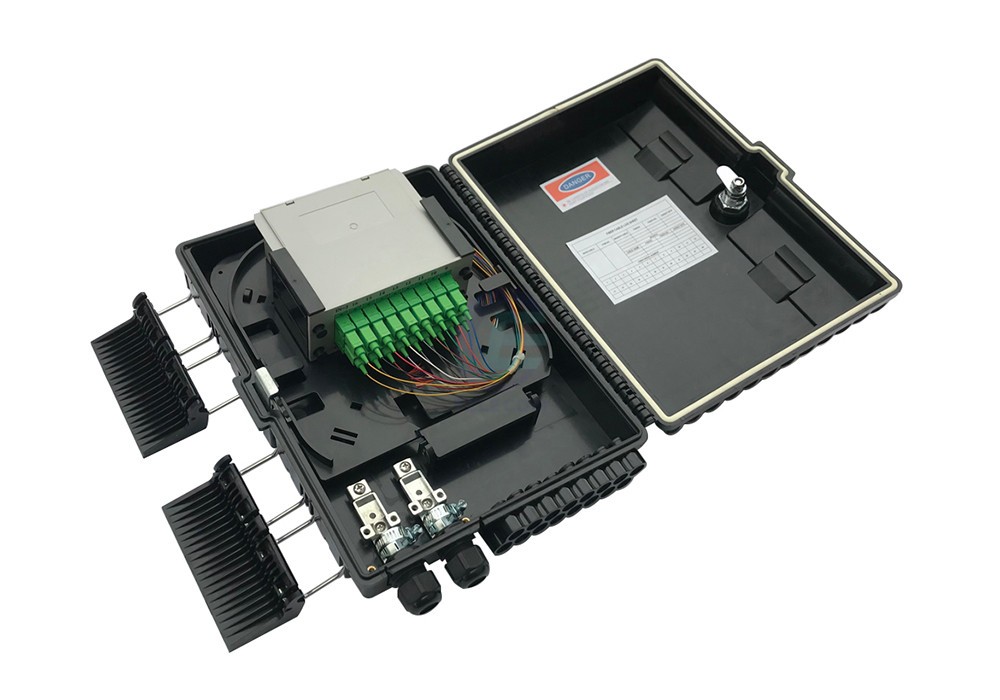

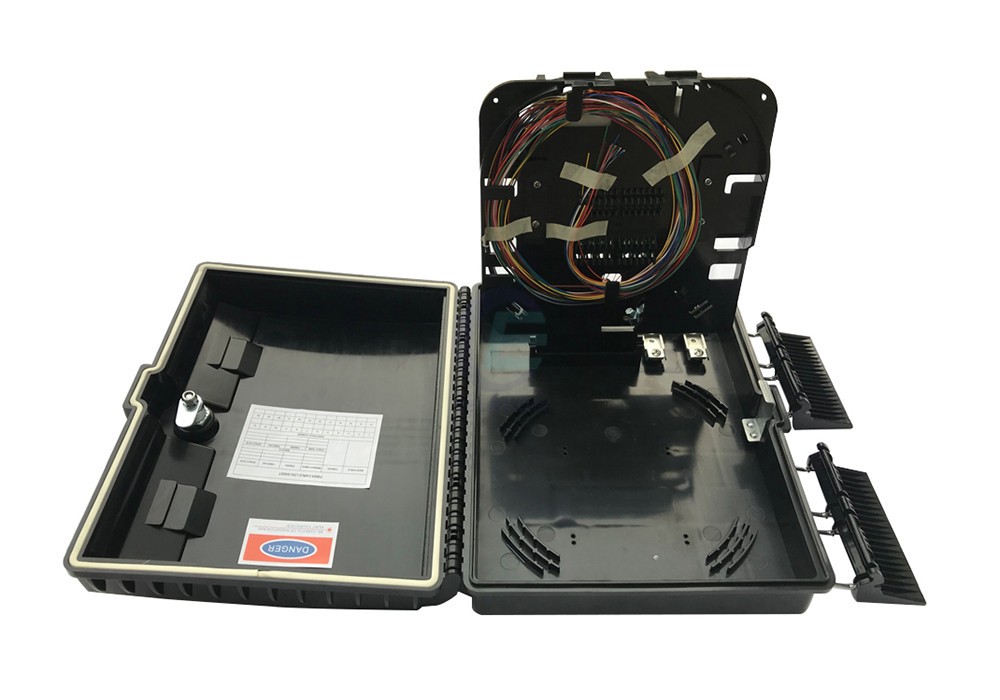

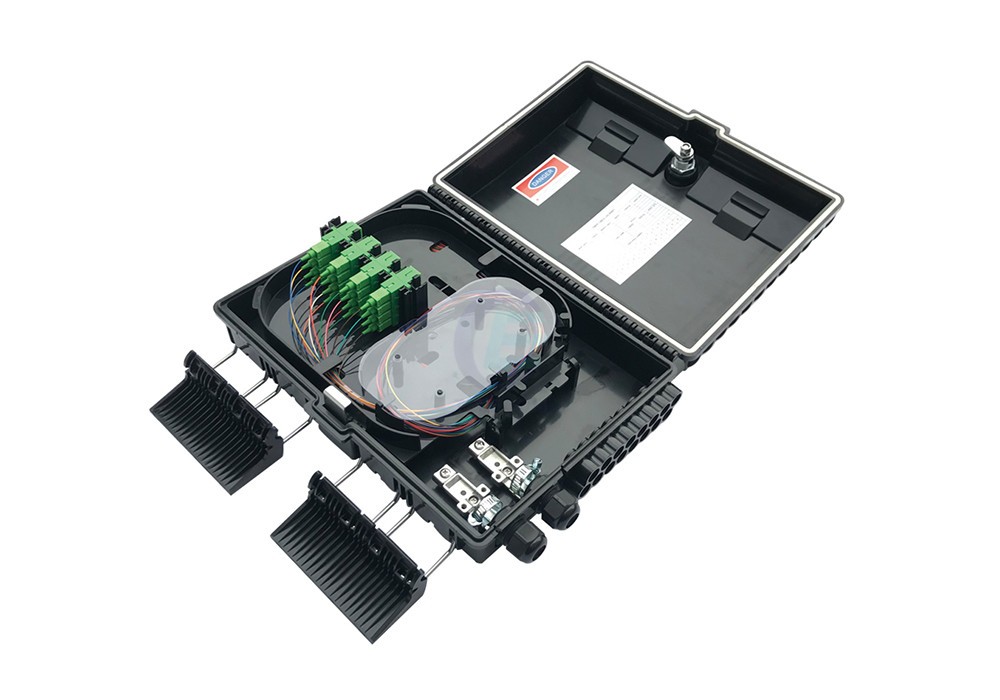

EC17-02-16A FTTH Distribution Box

Overview:
This 16 ports Outdoor Wall/ Pole Mounted Optical Fiber Distribution Box is used for splicing and termination between indoor SC/ LC/ FC fiber optic cable and pigtails. It is used for wall mounted to connect indoor cable with drop cables.
Click:581

Service Online：

Product Details

Datasheet Download

Features:
• Sophisticated Design: the fiber optic distribution box’s cables, pigtails, and jumpers are self-propelled and do not interfere with each other. Box-type SC/FC/PLC adapters are installed.
• Waterproof and Dustproof: the optical fiber connector tray is made of PC+ABS material, moisture-proof, waterproof, dust-proof, anti-aging, and the protection grade is IP65.

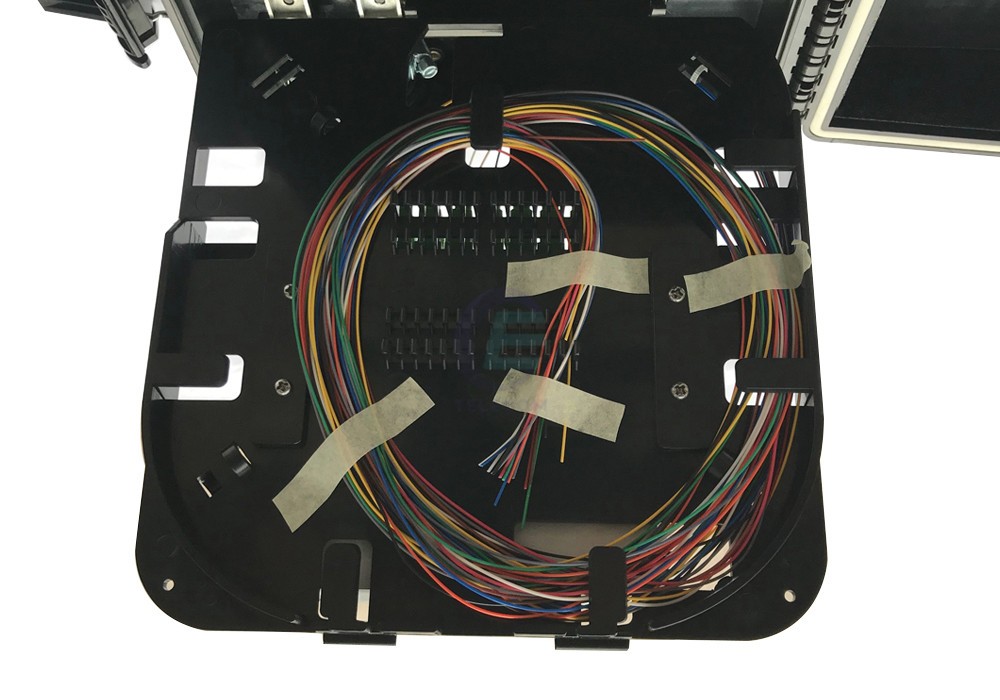

• Product Use: the optical fiber distribution box is used for the integration of incoming optical cables, and the fusion, winding, storage and distribution of optical fibers.
• Extensive Malleability: The optical fiber connector distribution box can install 16 optical adapters or 1 to 16 plug-in optical splitters.

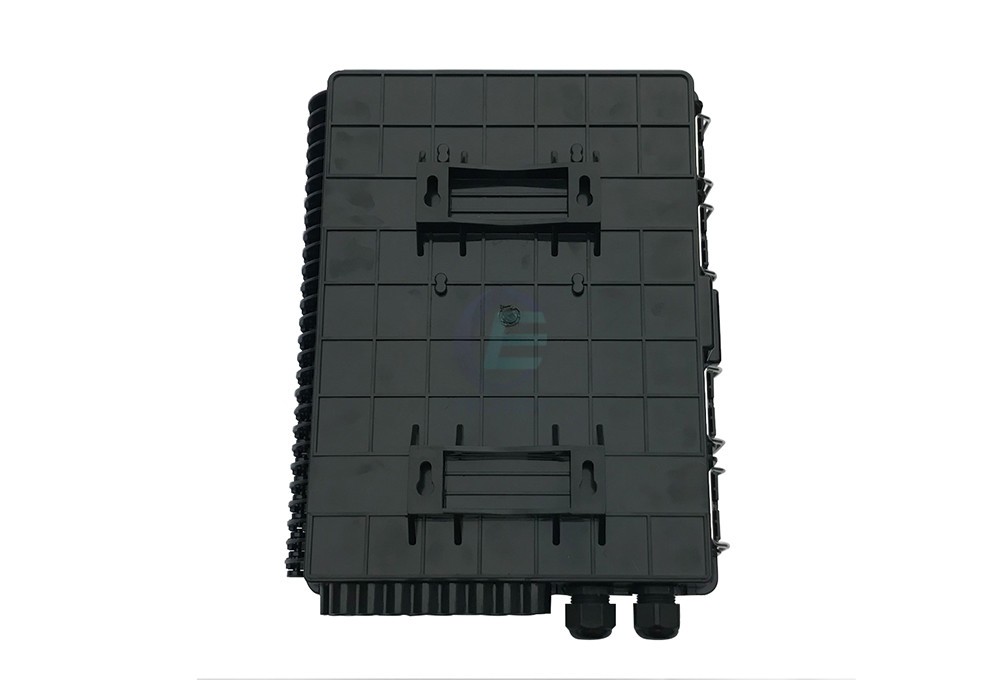

• Wall-mounted or Pole-mounted design; Can be used for indoor or outdoor.

Specifications:

Material: PC+ABS
Dimensions (HxWxD): 305x240x105mm
Max. Capacity:

16 SC simplex adapter

1 to 8 or 1 to 16 plug-in optical splitter

Inlet: 2 port
Outlet: 16 ports
Installation way: Wall Mounted, Pole Mounted
