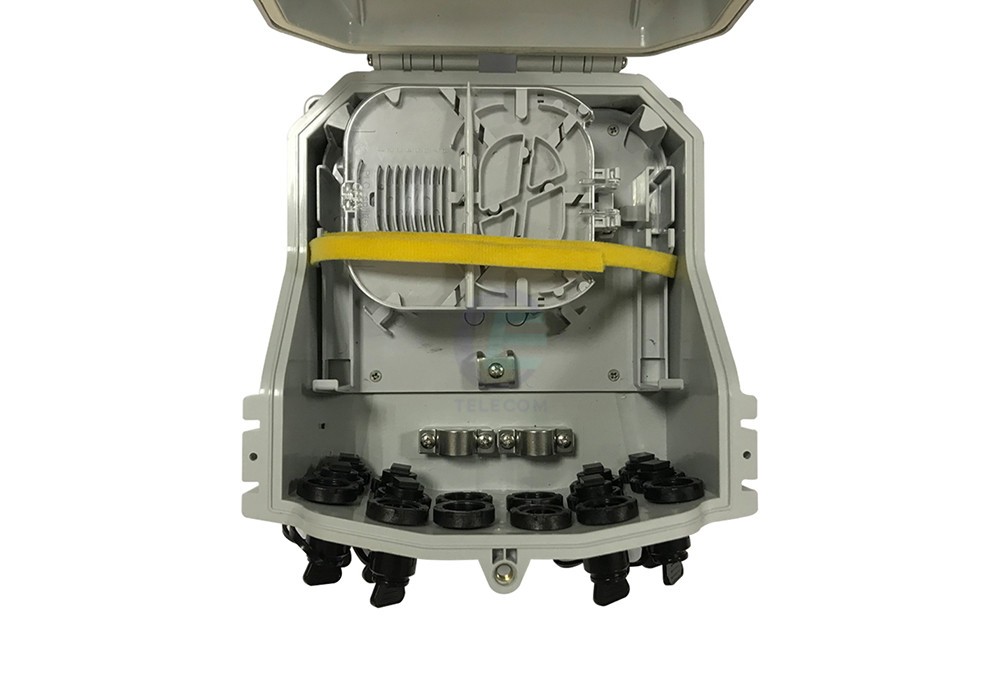

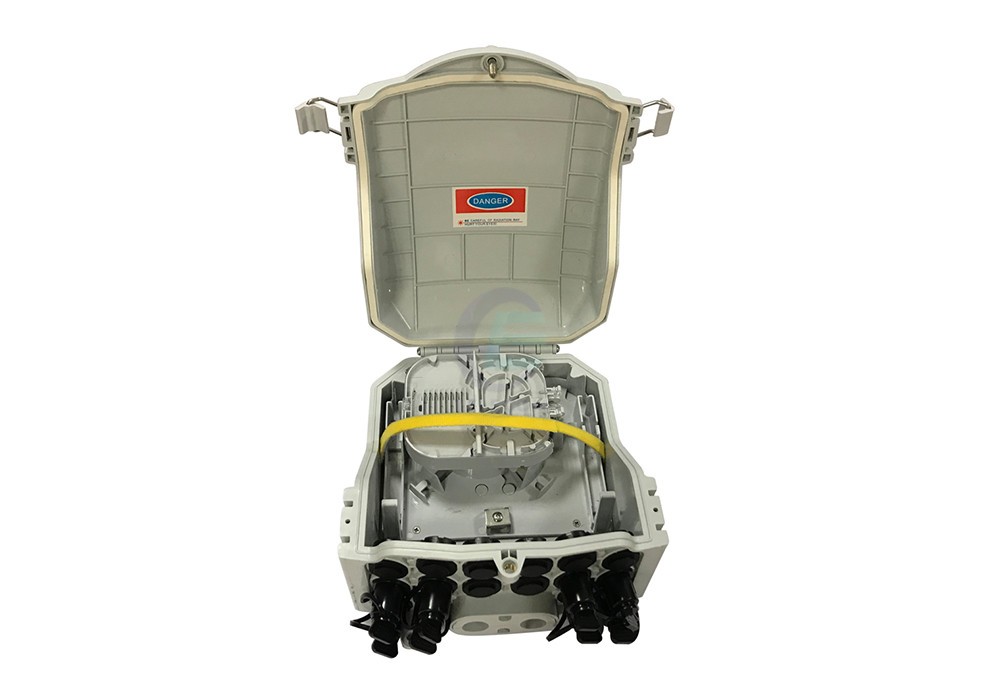

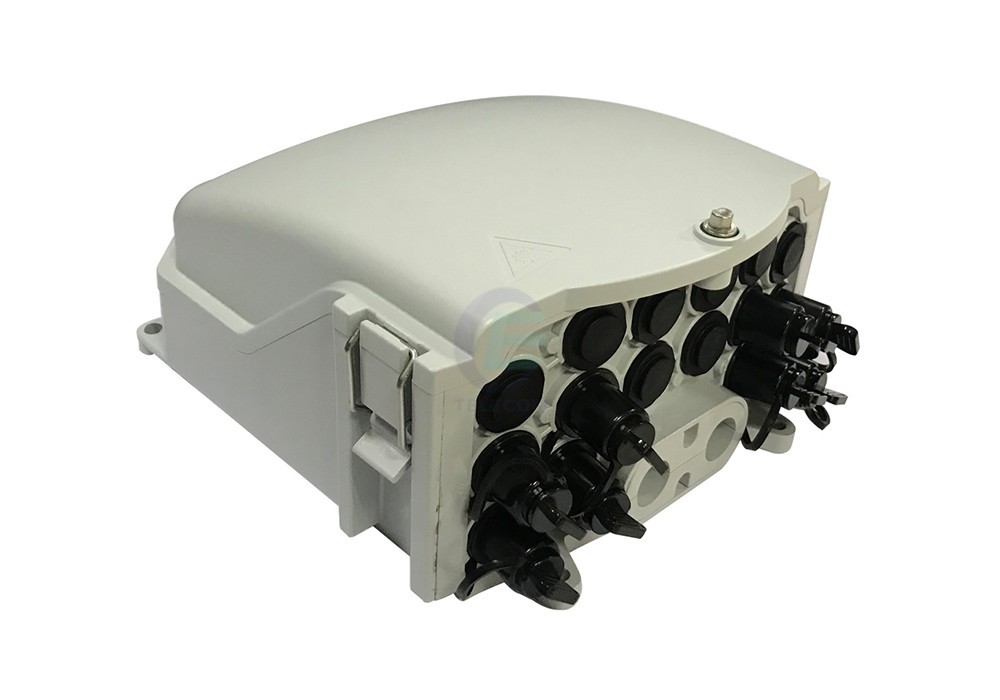

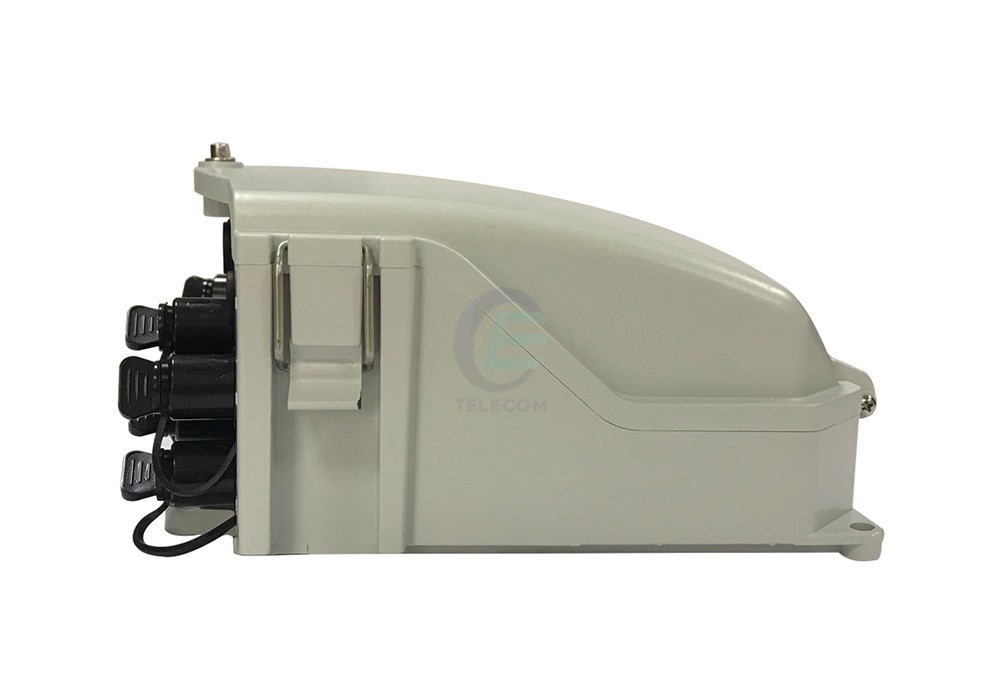

EC17-02-16D FTTH Distribution Box

Overview:
This Indoor / Outdoor Wall / Pole Mounted FTTH Optical Fiber Splitter Distribution Box with Waterproof Fast Connection is used for wall mounted, pole mounted or aerial splicing and termination. It can come with 16 pcs waterproof SC adapters to fit with SC waterproof connectors directly, which will make the outdoor cabling extremely easy by plugging into the adapters.
Click:966

Service Online：

Product Details

Datasheet Download

Features:
• Water-proof design with IP65 Protection level

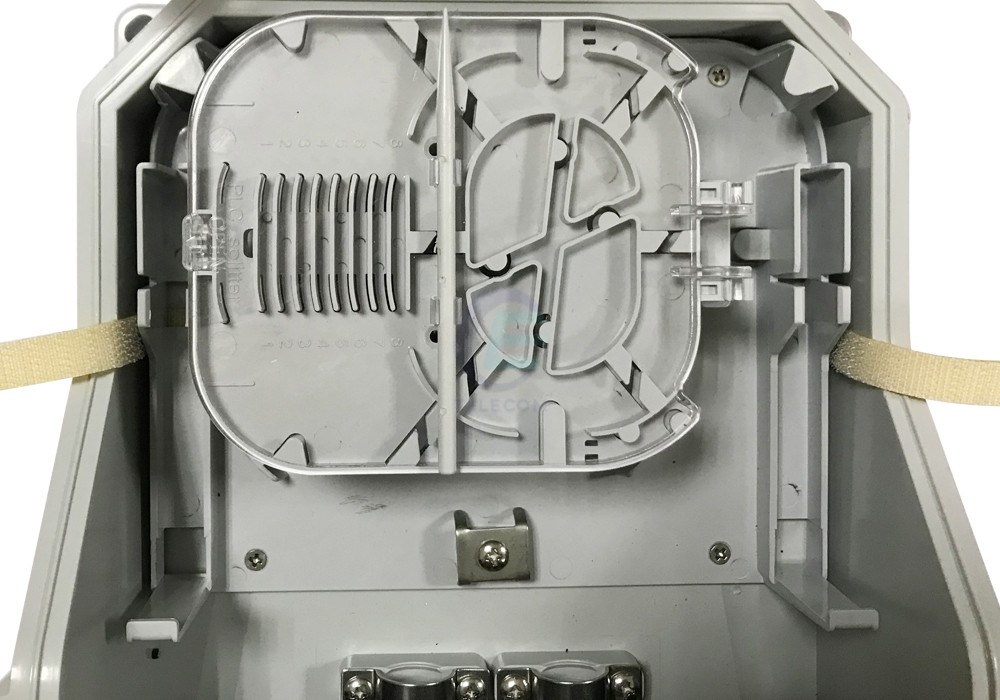

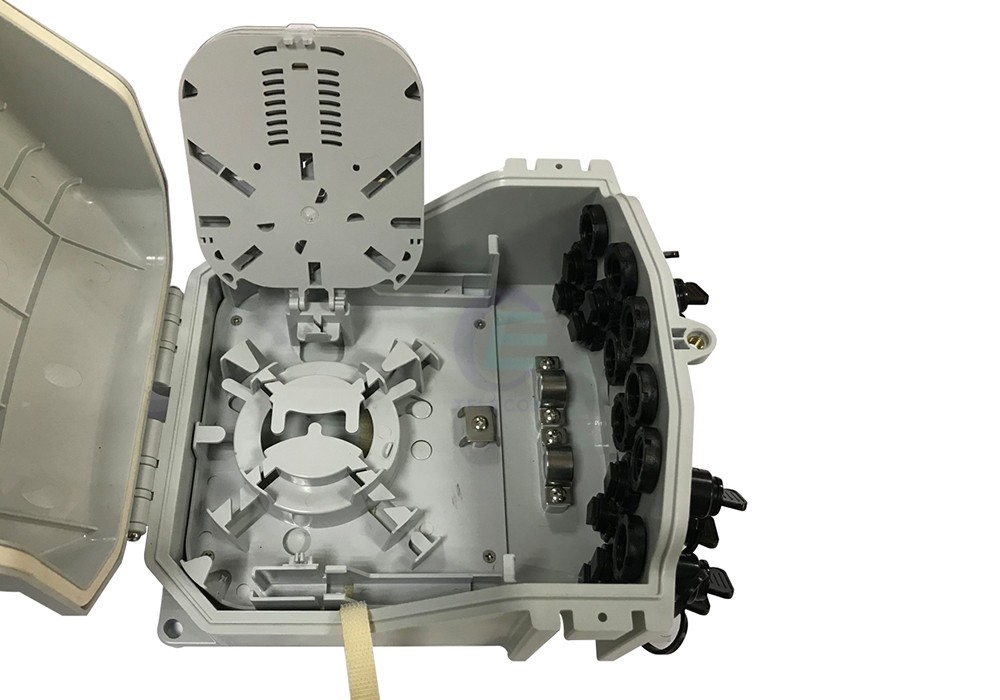

• Clamping for feeder cable and drop cable, fiber splicing, fixation, Storage, distribution, etc. All in one
• Manage fibers in a reasonable fibers radius condition
• Easy to maintain and extend the capacity
• Easy plug in or pull out.
• Suitable for the fusion splice or mechanical splice

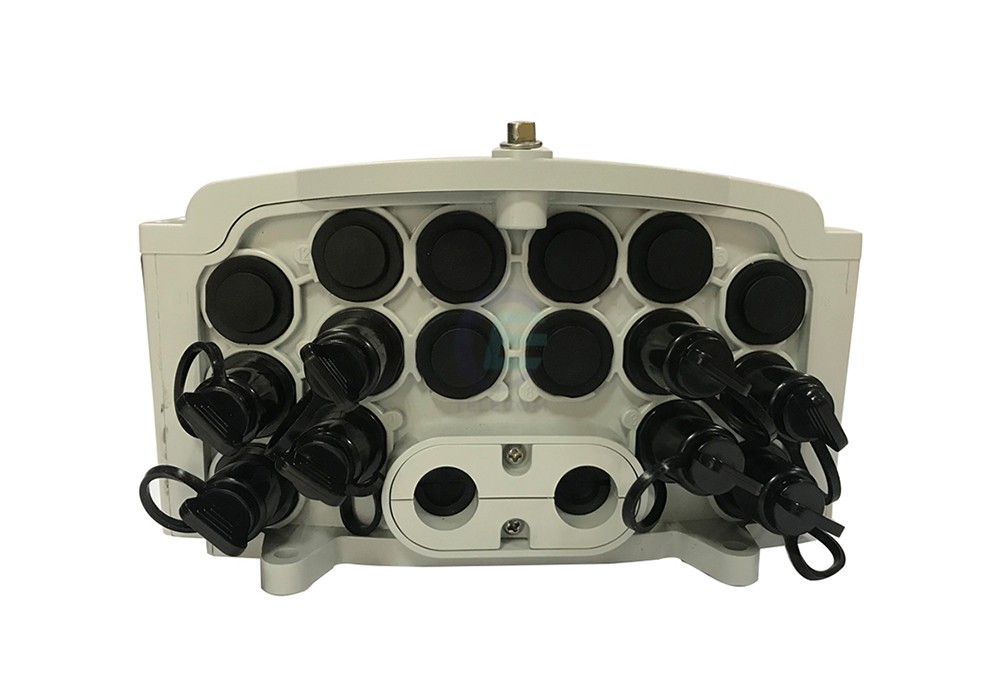

• 16 ports cable entrance for FTTH Drop Cable

Specifications:

Material: PC+ABS
Dimensions (HxWxD): 250x210x115mm
Max. Capacity:

16 waterproof SC adapter

Inlet: 2 port
Outlet: 16 ports

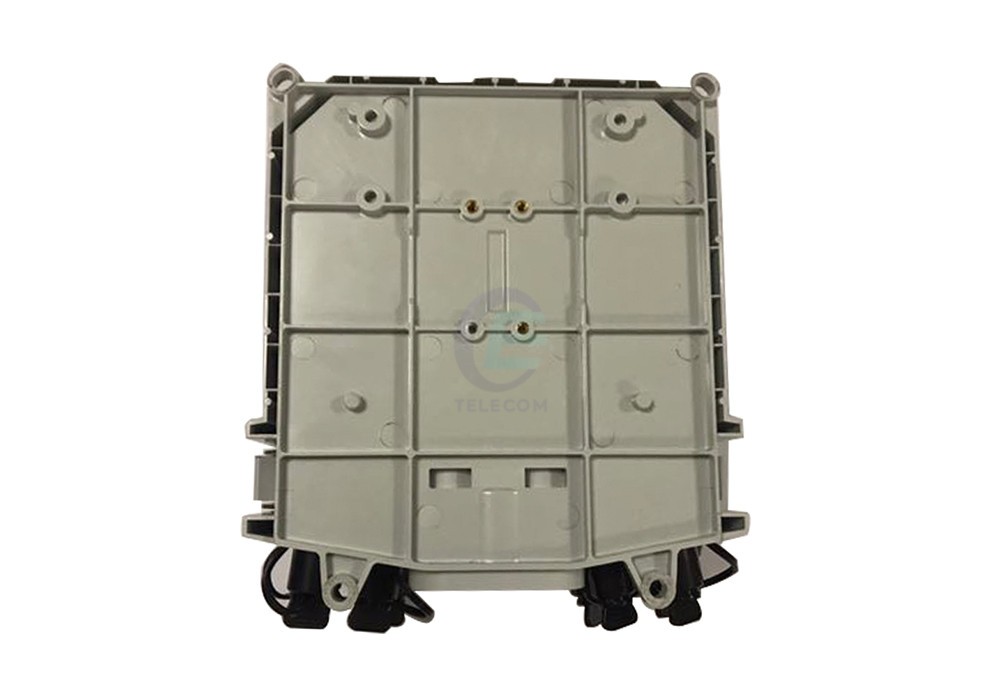

Installation way: Wall Mounted, Pole Mounted, Aerial Mounted
