2 Ports

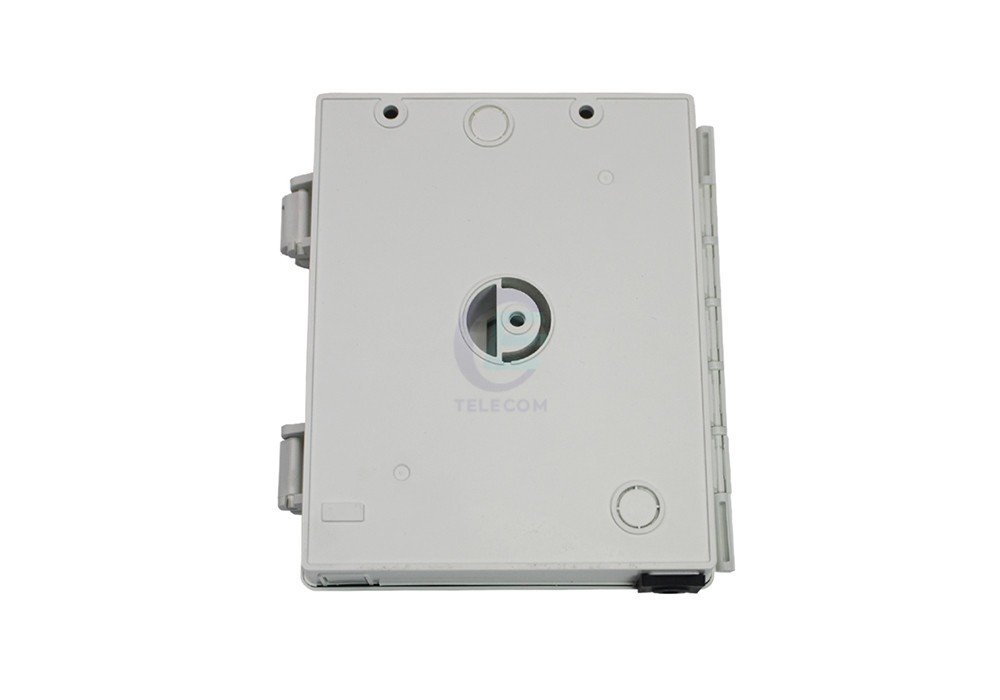

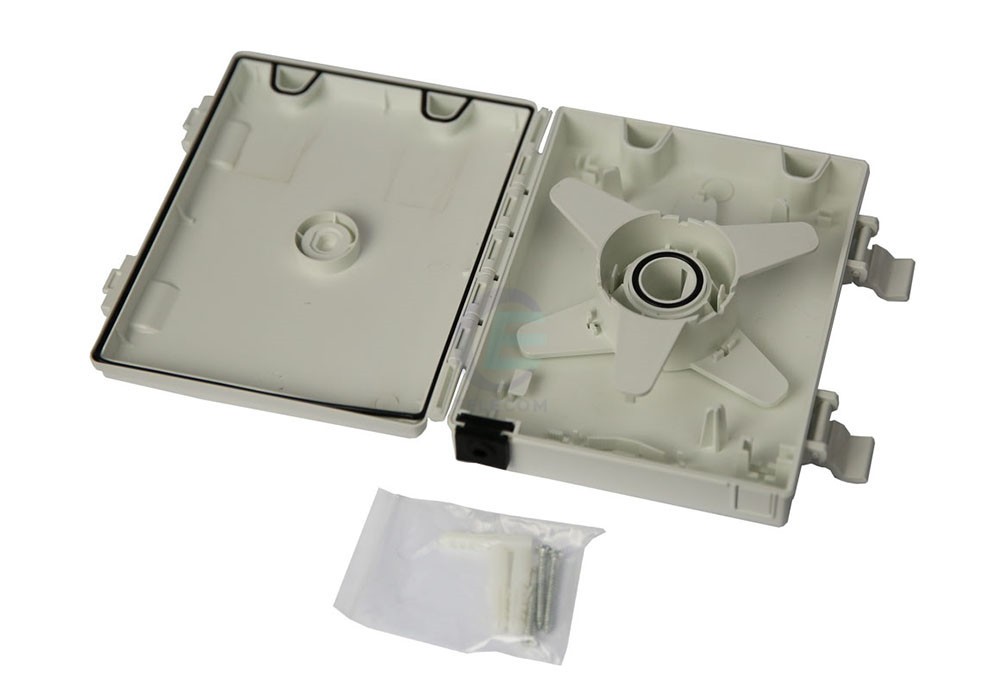

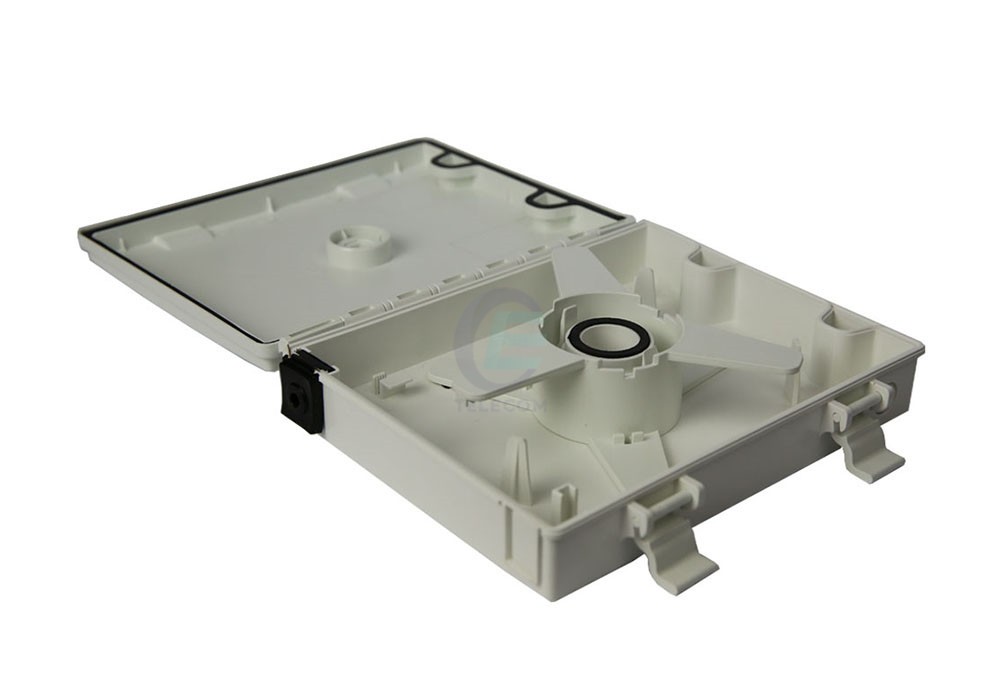

EC17-01-2E FTTH Terminal Box

Overview:
Fiber Optic Cable Coiling or terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Click:464

Service Online:

Product Details

Datasheet Download

Features:
• Place for fiber reserve up to 30 m
• Removable cable reel
• Can Install SC Simplex adapter
• Closed with two latches, seal
• Ease of installation, operation and maintenance


Specifications:

Material: PC+ABS
Dimensions (HxWxD): 150x135x35mm
Max. Capacity:

1 SC simplex adapter

1 LC duplex adapter

Inlet: 1 port
Outlet: 1 port
Installation way: Wall Mounted (indoor)
