4 Ports

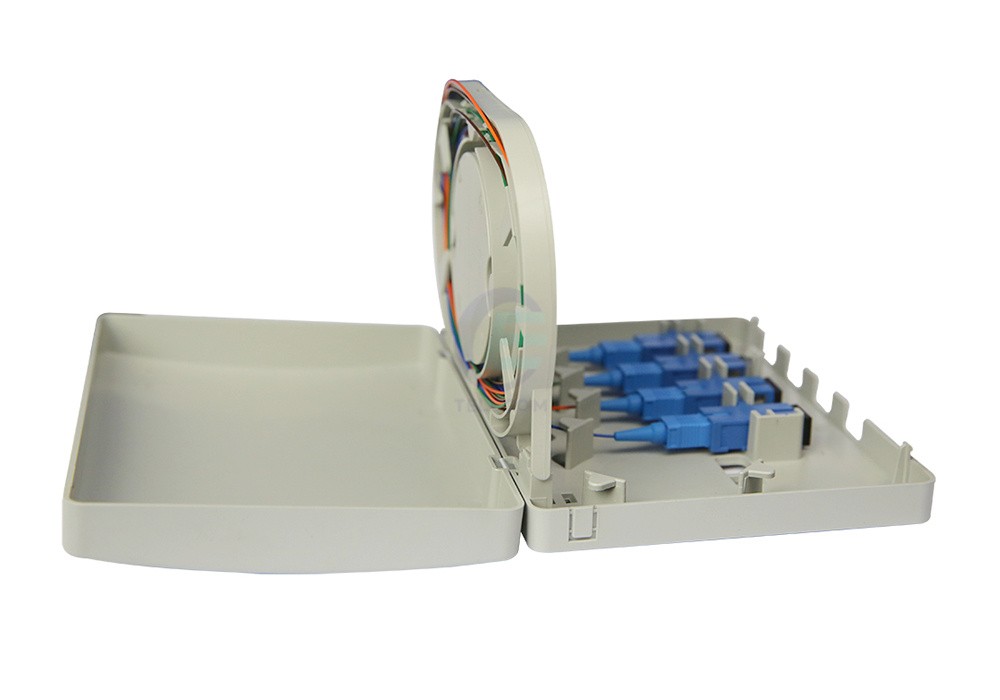

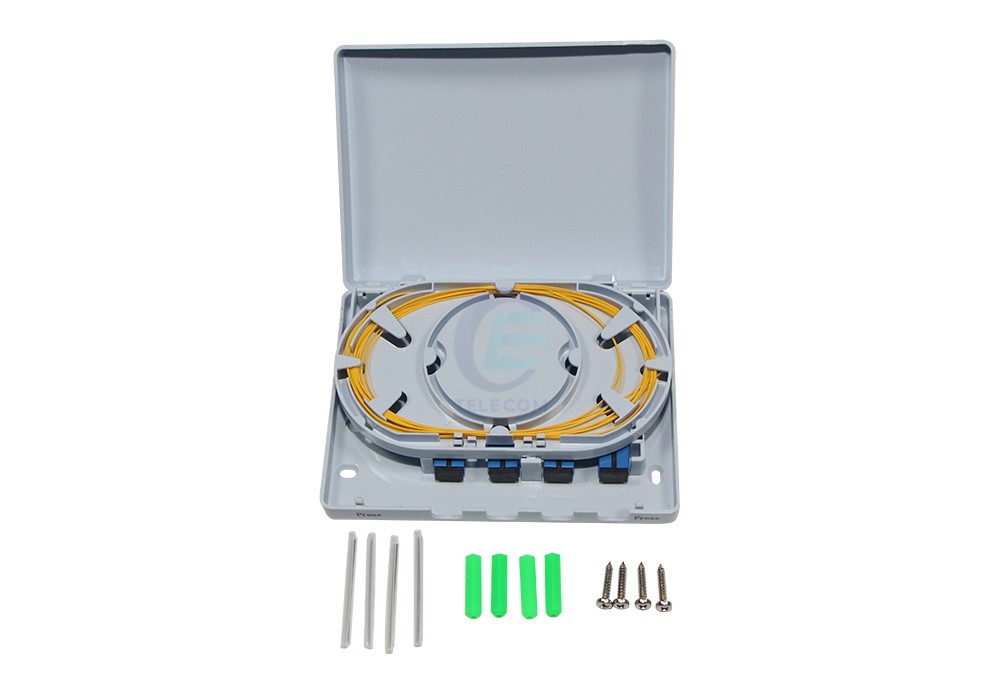

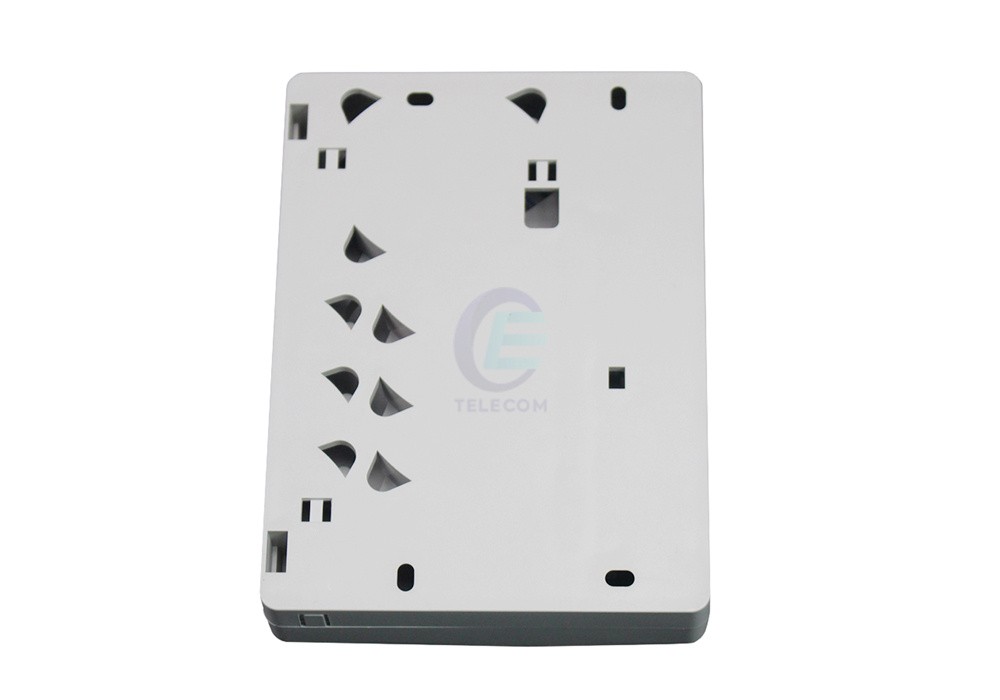

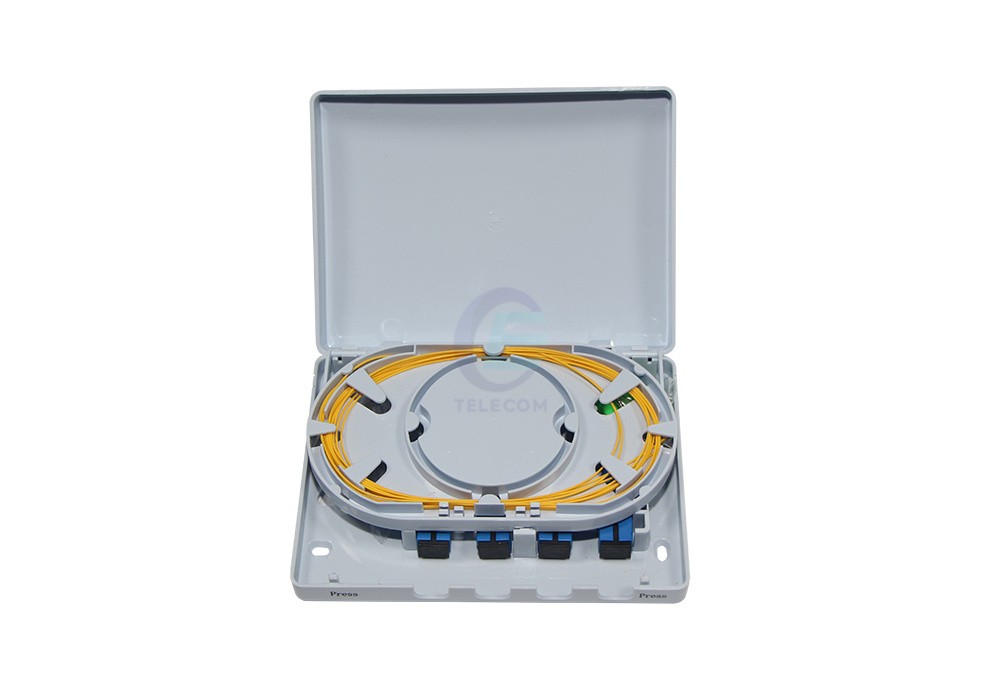

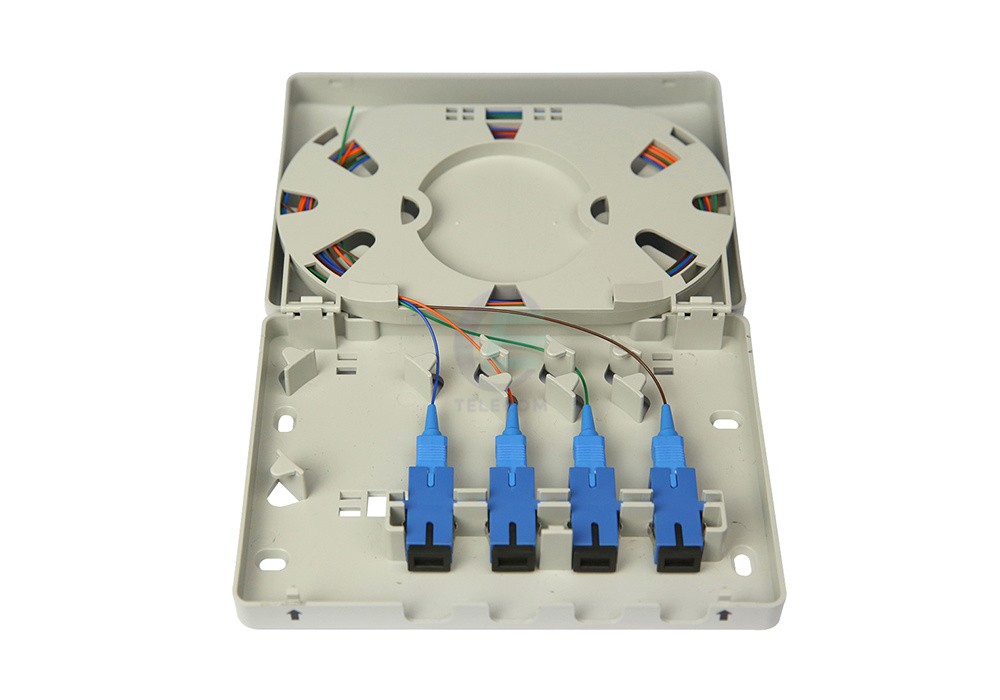

EC17-01-4A FTTH Terminal Box

Overview:
The optical fiber terminal box is the end connector of an optical cable. It provides a protective connection between the optical cable and the distribution pigtail. Insulate the metal components of the optical cable from the cable end shell, providing space for the placement of the optical cable terminal and the storage of the remaining optical fiber, and facilitating installation and operation.
Click:495

Service Online：

Product Details

Datasheet Download

Features:
• No additional insertion loss, easy operation, low construction intensity
• This snap-in module is easy to install with straight tip style fiber optic connector
• Support SC, FC, LC fiber adapter, single mode or multimode

Specifications:

Material: PC+ABS
Dimensions (HxWxD): 150x110x25mm
Max. Capacity:

4 SC or FC simplex adapter

4 LC duplex adapter

Inlet: 1 port
Outlet: 4 ports
Installation way: Wall Mounted (indoor)

Next: EC17-01-4B FTTH Terminal BoxPrevious: No More
