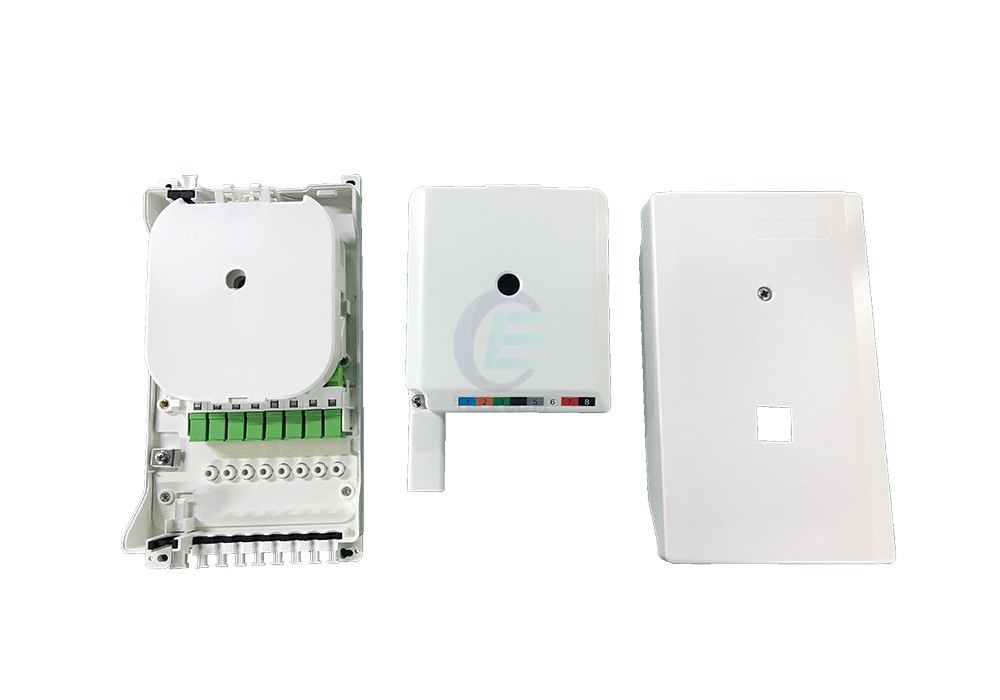

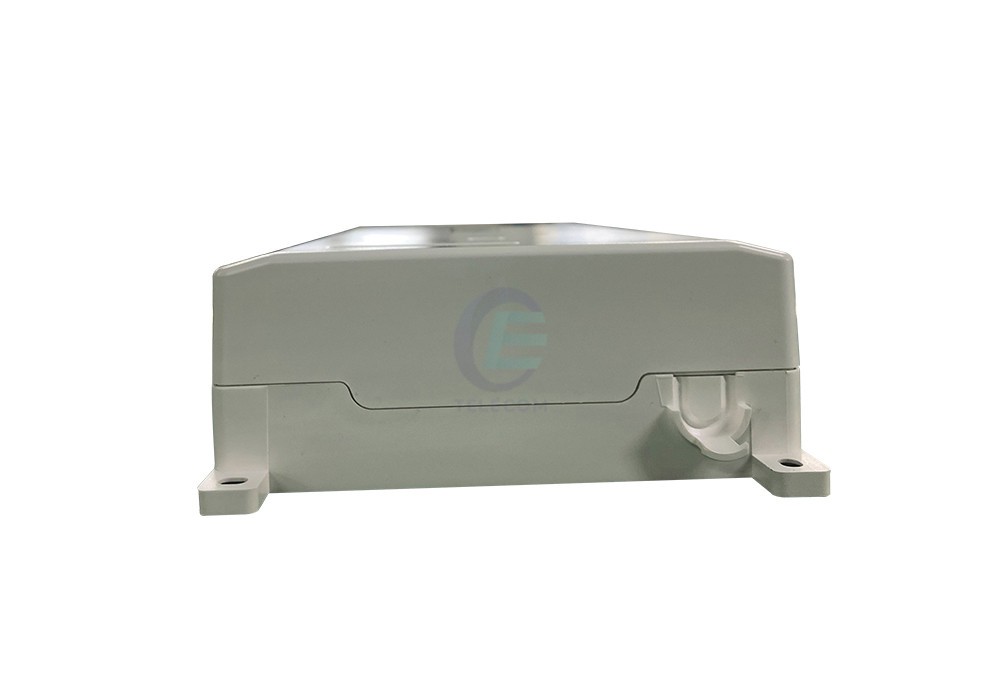

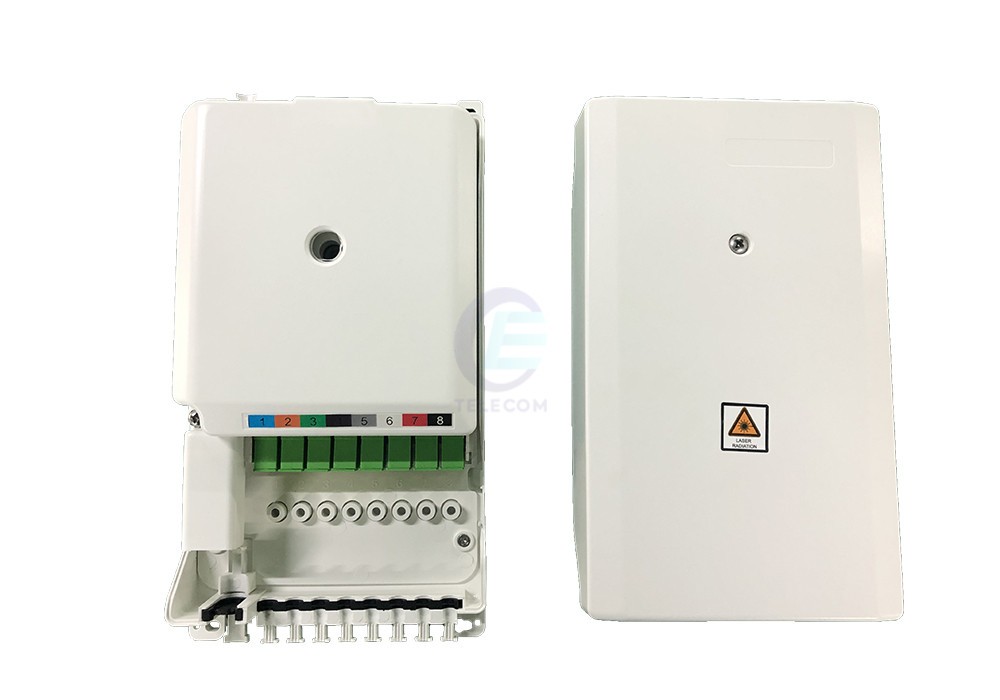

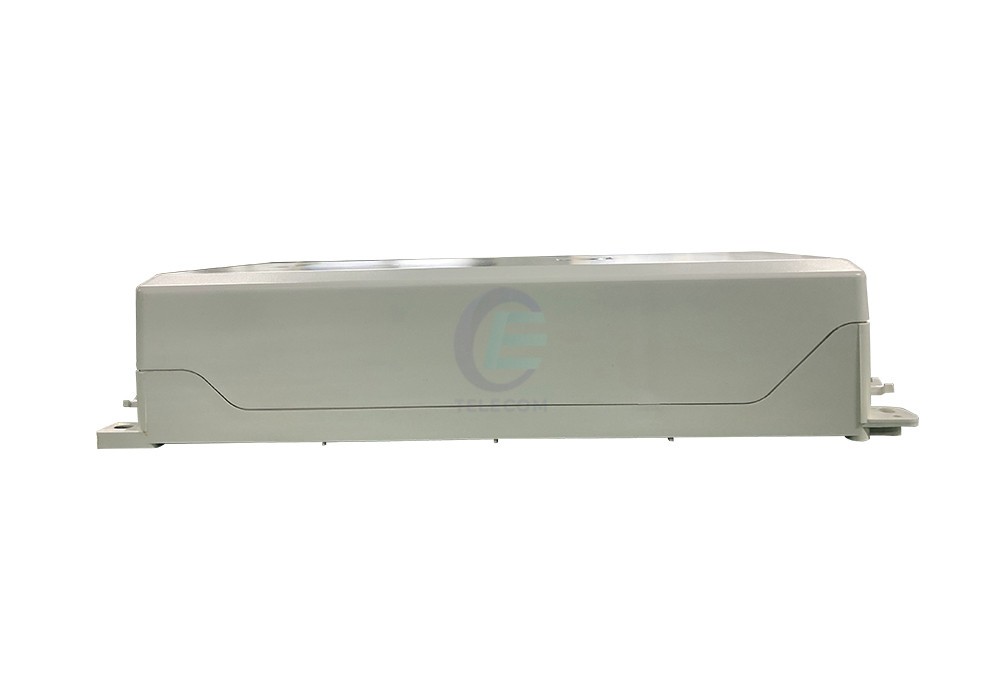

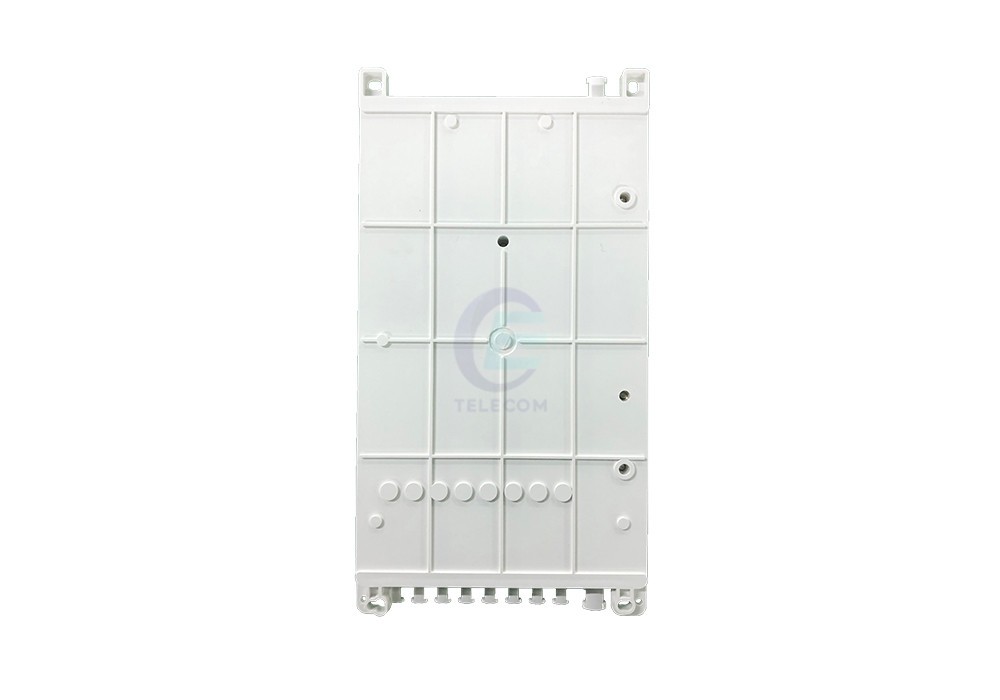

The optical fiber terminal box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable.
Click:350
Features:
• Water-proof design with IP-65 protection level for outdoor.

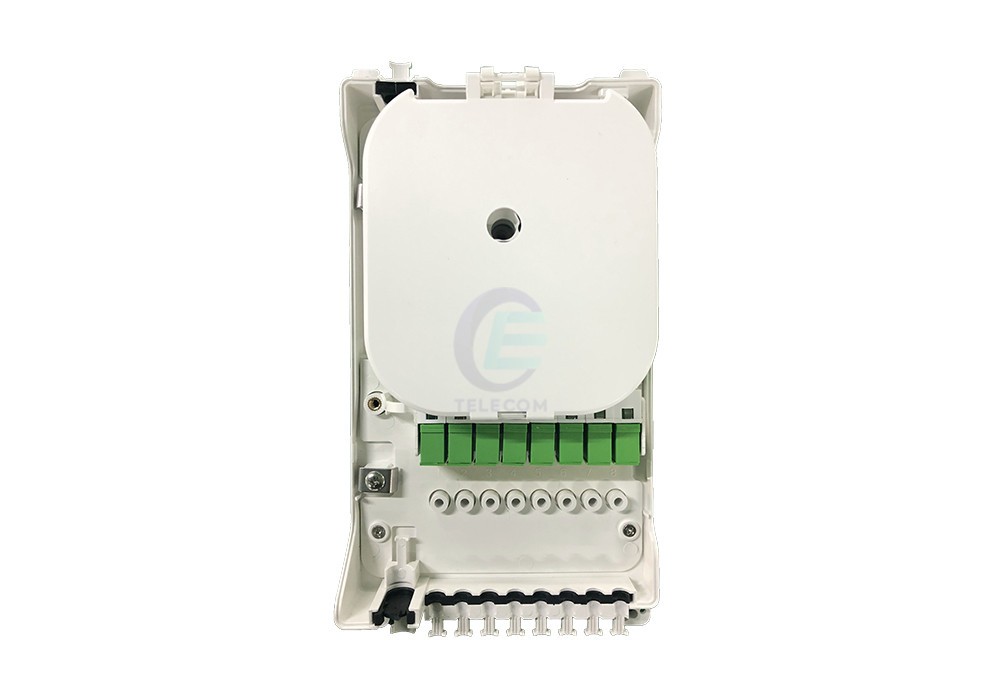

• Integrated with 2 x splice trays and 8 x shutter type adapters.
• Fiber bend radius control more than 35mm.
• 2 x inlets for uncut cable with maximum diameter 12mm .
• 2 x covers structure to provide a better protection and neat cabling, unauthorized tampering is prevented.

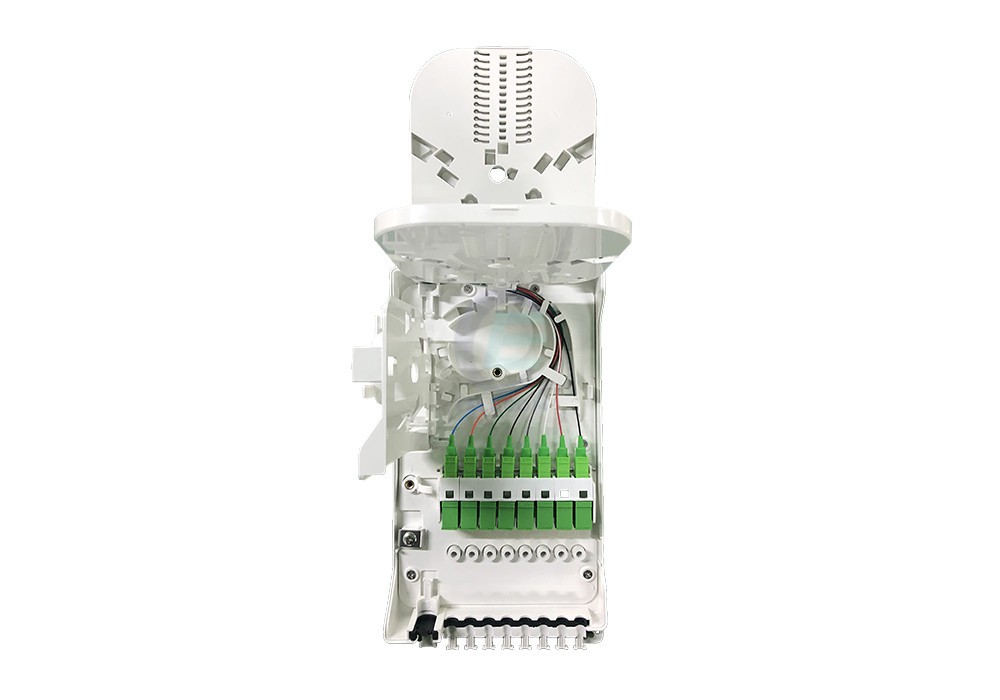

• Each splice tray accommodates 8 x sleeves (60x1.0mm) and 2 x splitters(1:2,1:4 or 1:8) .
• Made by industrial PC+ABS plastic with UL94-V0 fire retardant feature, life span at least 20 years.
• 8 x outlets for 2x3mm flat type or 3-5mm round type drop cable.
