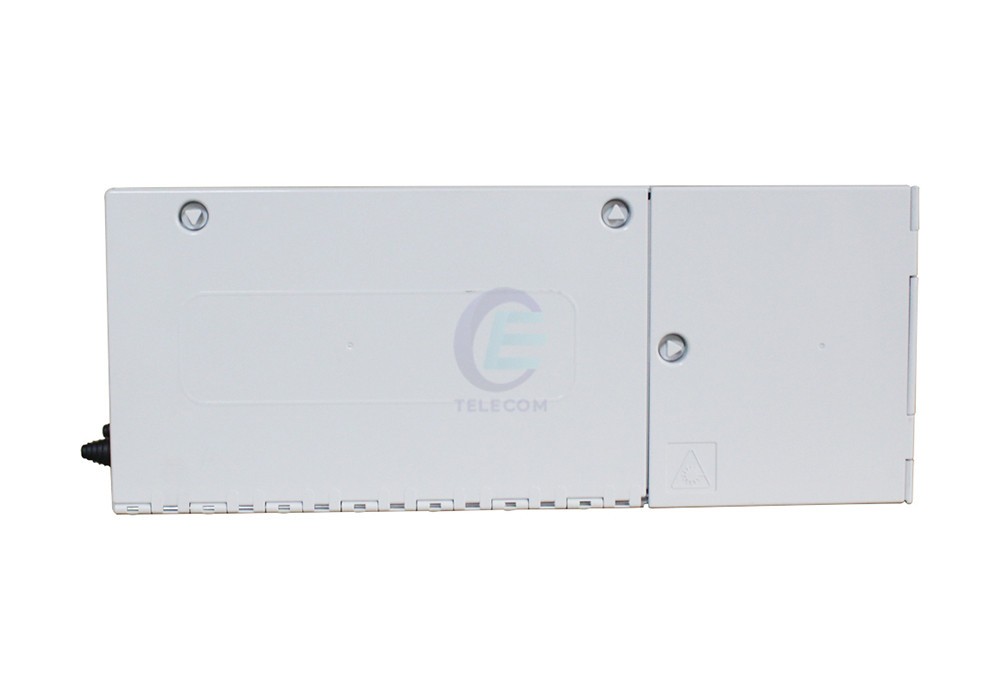

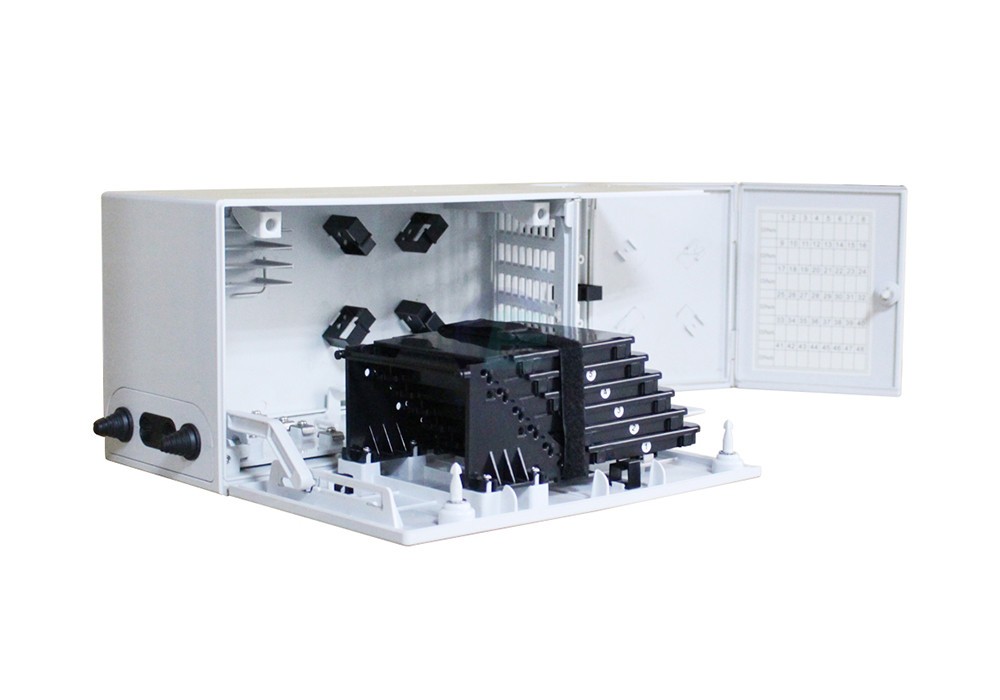

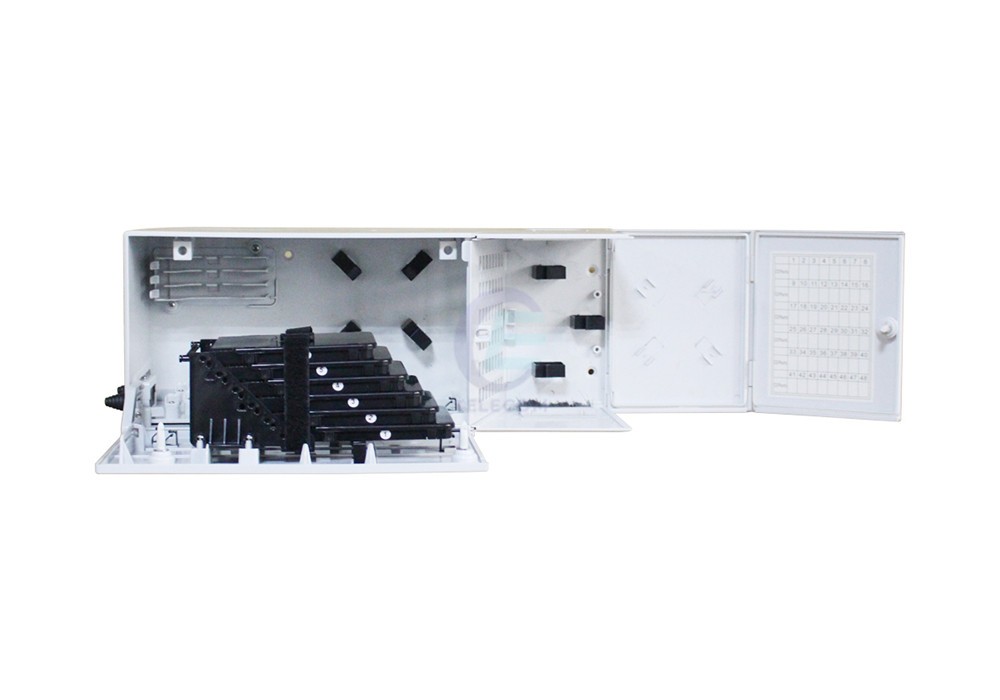

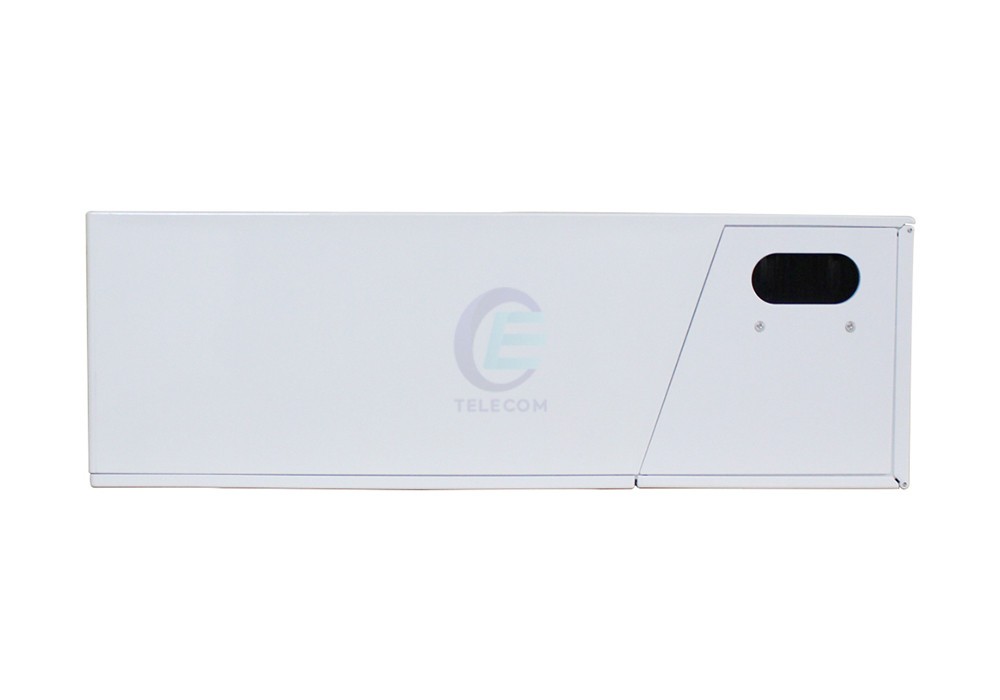

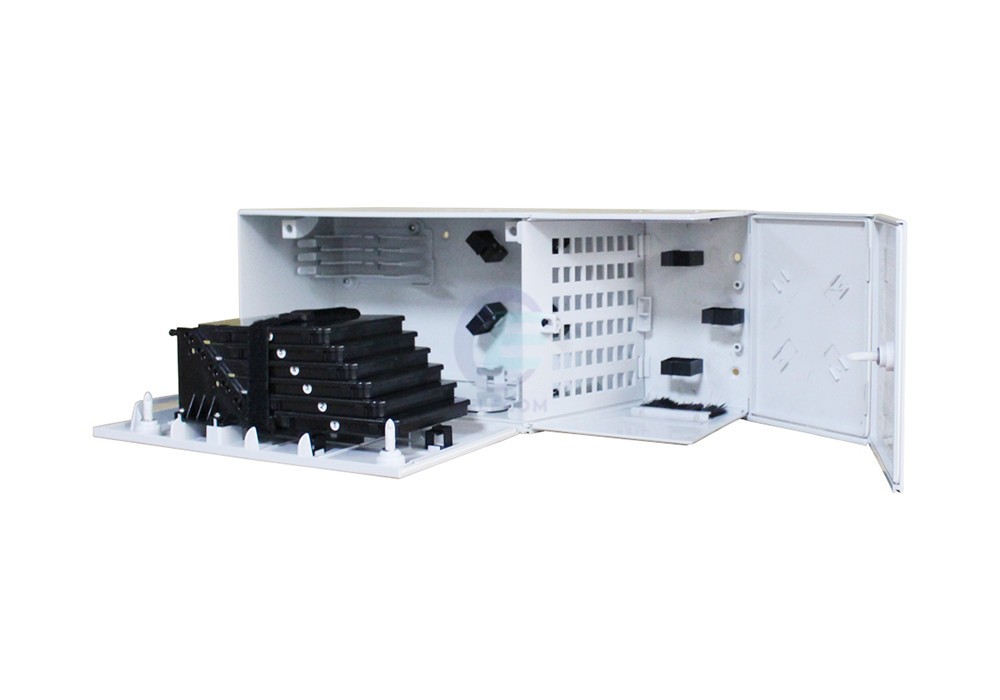

EC17-01-48A FTTH Terminal Box

Overview:
The optical fiber terminal box is a pooling module for splicing, coupling and stirring up to 48 optical fibers. The modules can be stacked to support configurations of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.
Click:507

Service Online：

Product Details

Datasheet Download

Features:
• Industry standard user interface, be made of high impact plastic
• Anti-UV, ultra violet resistant and rainfall resistant
• Can accommodate 48 SC/SX adapter
• Up to 48 FTTH drops
• Wall and pole mountable
• 4 inlet ports, 1 outlet port

Specifications:

Material: PC+ABS
Dimensions (HxWxD): 180x450x150mm
Max. Capacity:

48 Splices + 48 SC simplex adapters

3pcs of 1:16 splitter

Inlet: 4 ports
Outlet: 48 ports
Installation way: Wall Mounted (indoor), Pole Mounted.
