Datasheet DownloadFeatures：
• Straight-through, branching, splicing and distribution functions
• IP68 Protection
• Applications: aerial, buried and mounted in manhole
• Stackable splice trays, easy open and maintenance
• Splice trays can be easily increased and reduced according to capacity
• Bending radius of fiber at any place is greater than 30mm
Specifications:

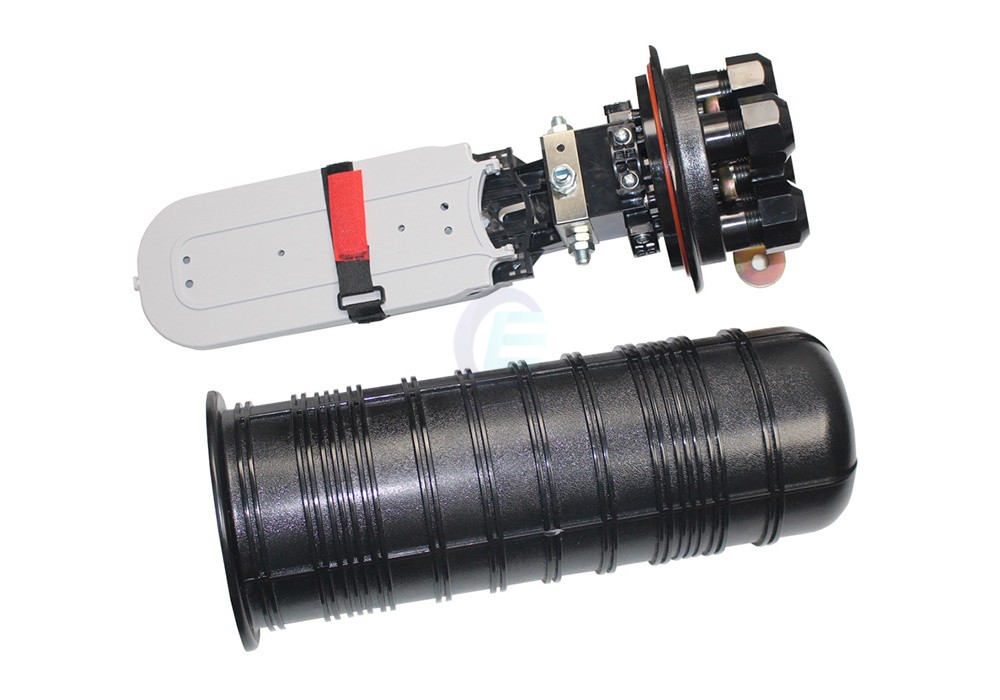

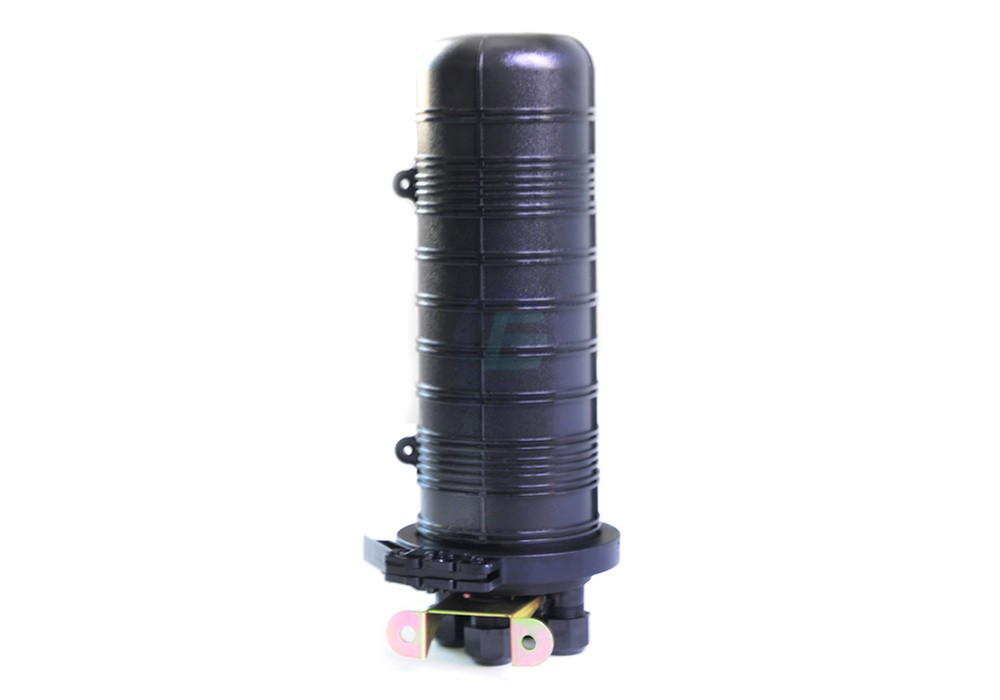

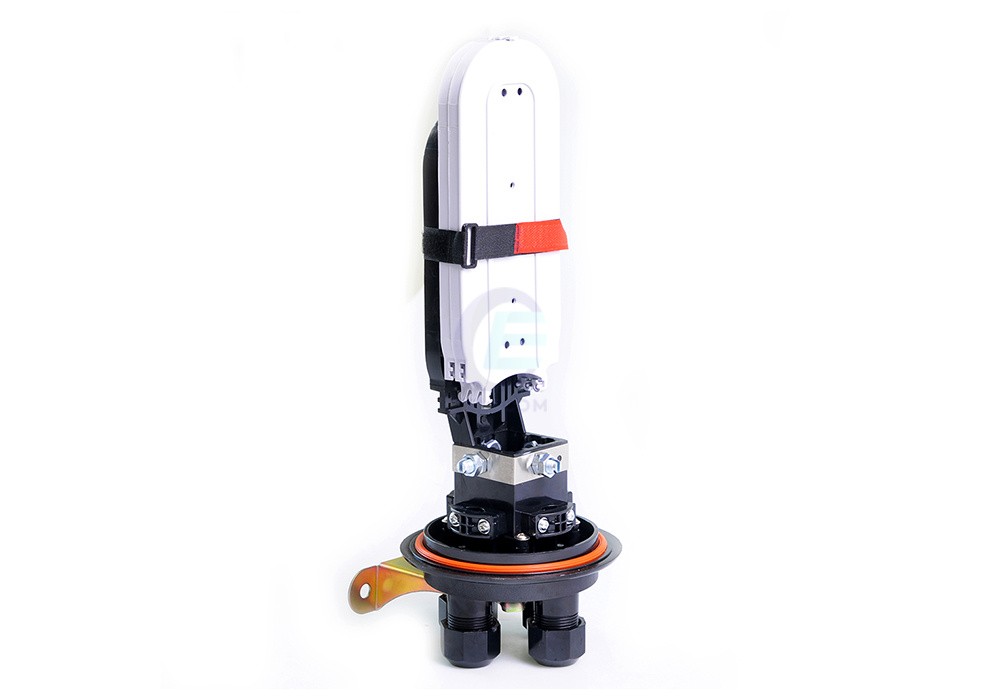

| Model | EC18-D002 |
| Dimensions (H x Dia.) | 430mm x Φ190mm |
| Type | Dome Type |
| Seal Type | Mechanical |
| Number of Inlet / Outlet Ports | 4 Ports |
| Cable Diameter | Φ5mm – Φ18mm |
| Max. Capacity | Bunchy: 96 fibers; Ribbon: 288 fibers |

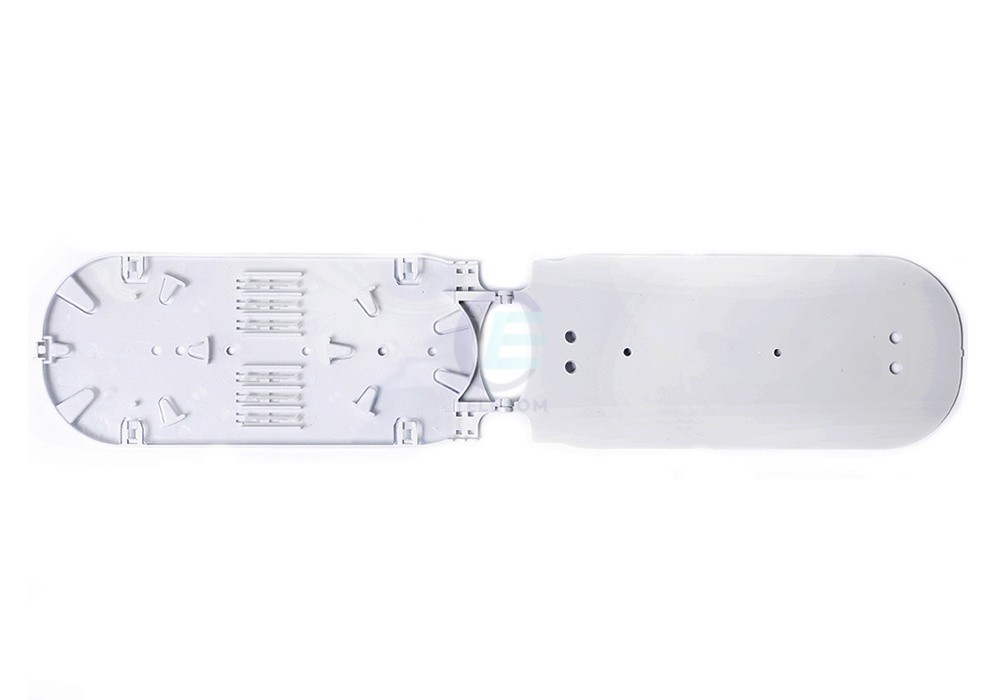

| Capacity per Splice Tray | 12 fibers or 24 fibers |
| Quantity of Splice Tray | 4pcs |
| Body Material | PP |
| Splice Tray Material | ABS |
| Application | Aerial, Buried or Manhole Mounting |
