Product Details
Datasheet DownloadFeatures：
• Straight-through, branching, splicing and distribution functions
• IP68 Protection
• Applications: aerial, buried and mounted in manhole

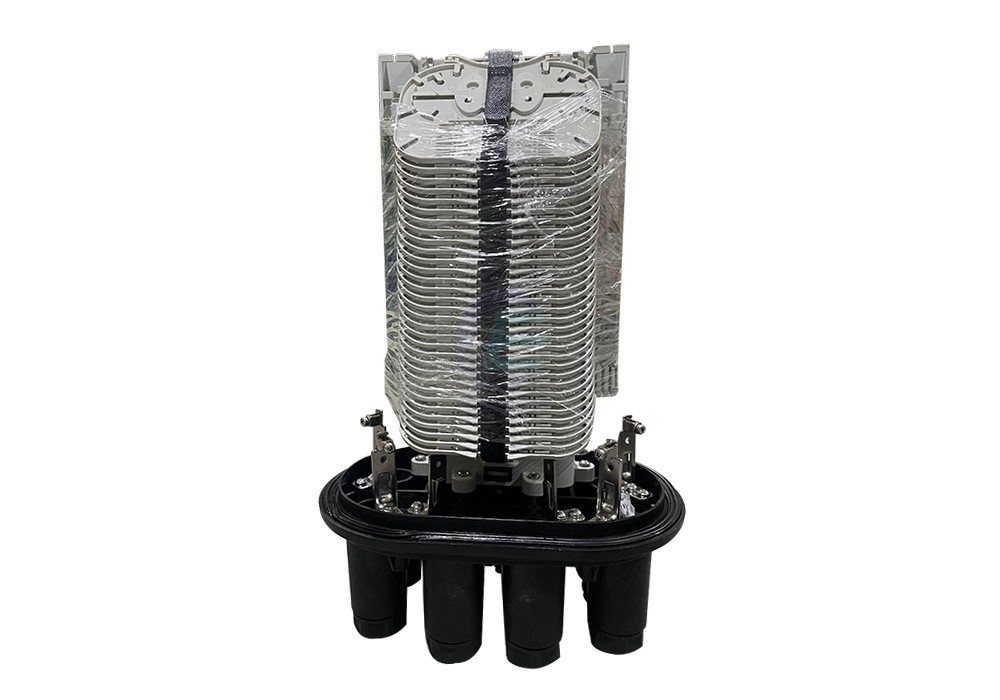

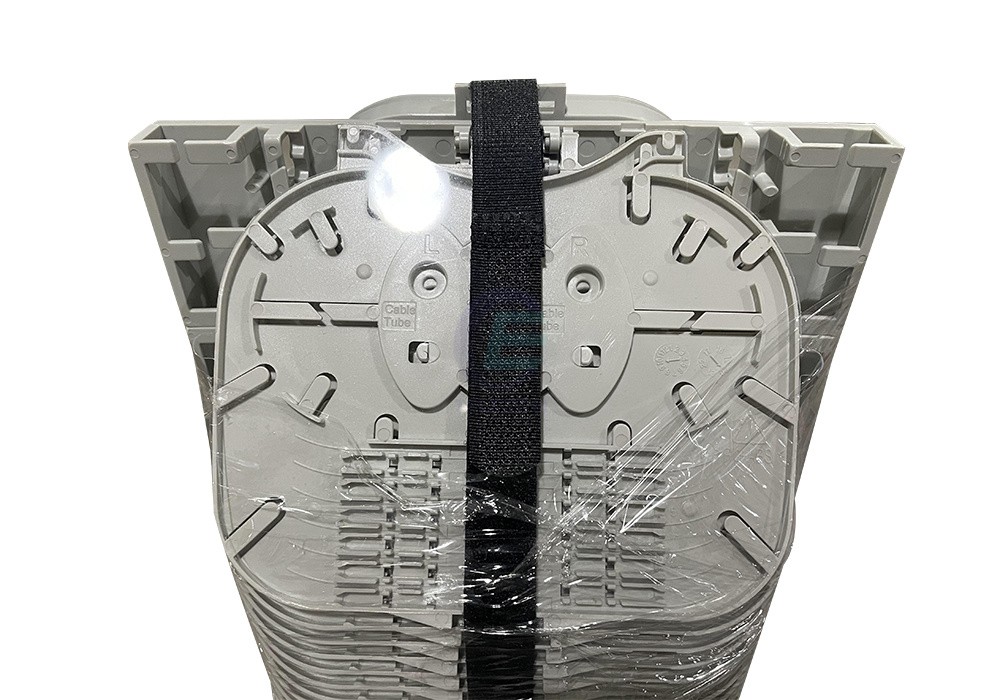

• Stackable splice trays, easy open and maintenance
• Splice trays can be easily increased and reduced according to capacity
• Bending radius of fiber at any place is greater than 30mm
Specifications:
|
Model |
EC18-D007 |
|
Dimensions (H x Dia.) |
445mm x Φ323mm |
|
Type |

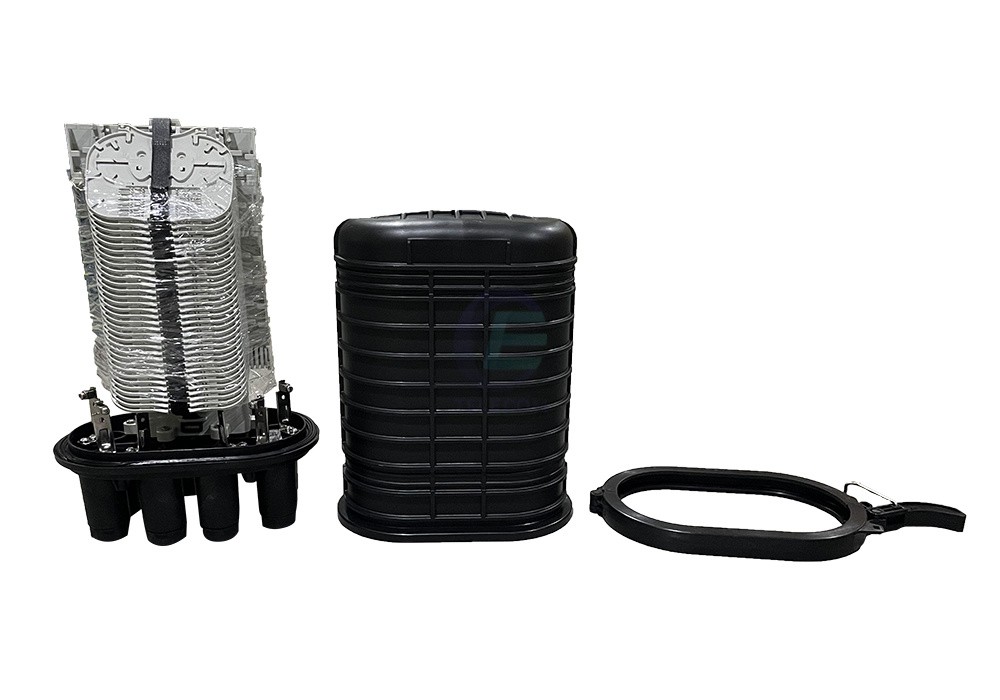

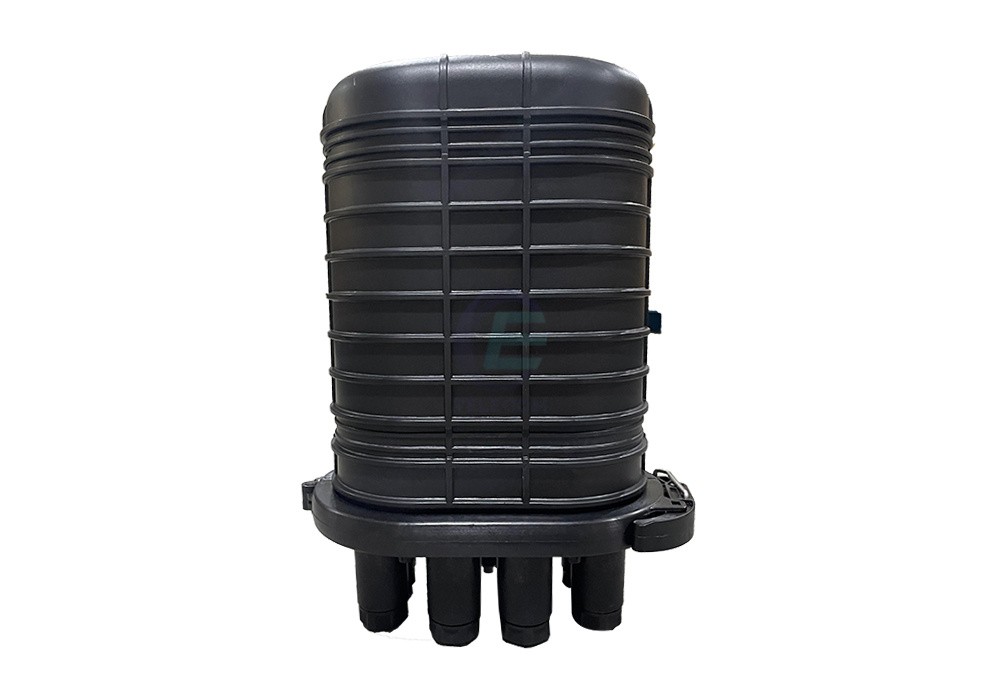

Dome Type |
|
Seal Type |
Mechanical |
|

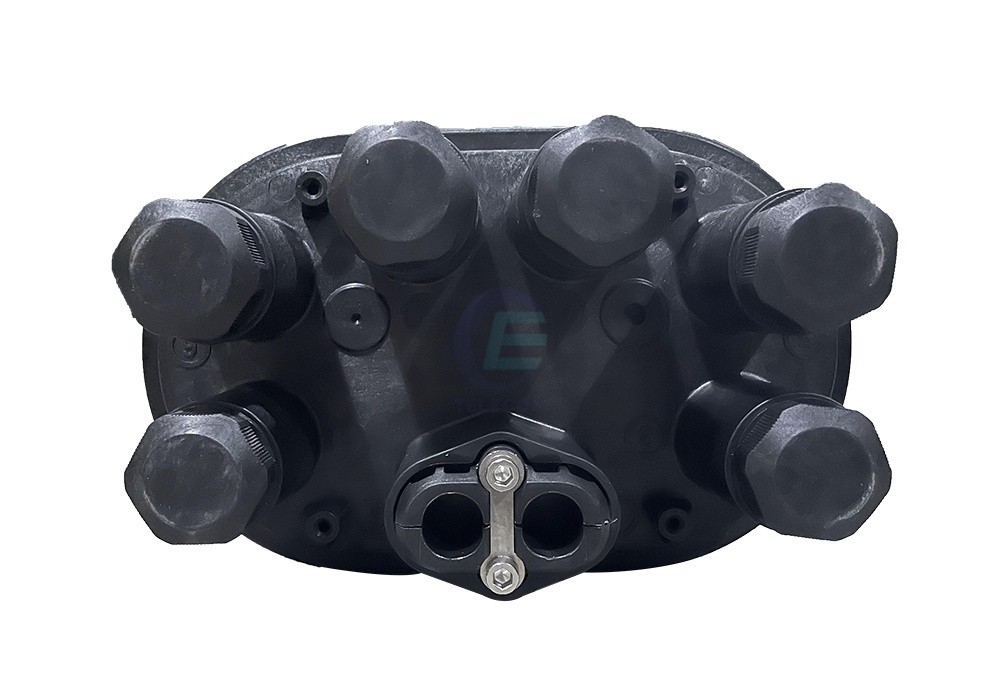

Number of Inlet/ Outlet Ports |
7 Ports |
|
Cable Diameter |
Φ8mm – Φ22mm |
|
Max. Capacity |
Bunchy:384 fibers |
|
Capacity per Splice or Splitting Tray |
12 fibers or 24 fibers |
|
Quantity of Splice Tray |
32pcs for 12FO tray; 16pcs for 24FO tray |
|
Body Material |
PP |
|
Splice Tray Material |
ABS |
|
Application |
Aerial, Buried or Manhole Mounting |
