Datasheet DownloadFeatures：
• Outdoor application and good UV resistance.
• 6 cable ports entrance, 2 for feeder cable (8-20mm) and 4 for branching cable (5-16mm).
• High strength material with good weather adaptability

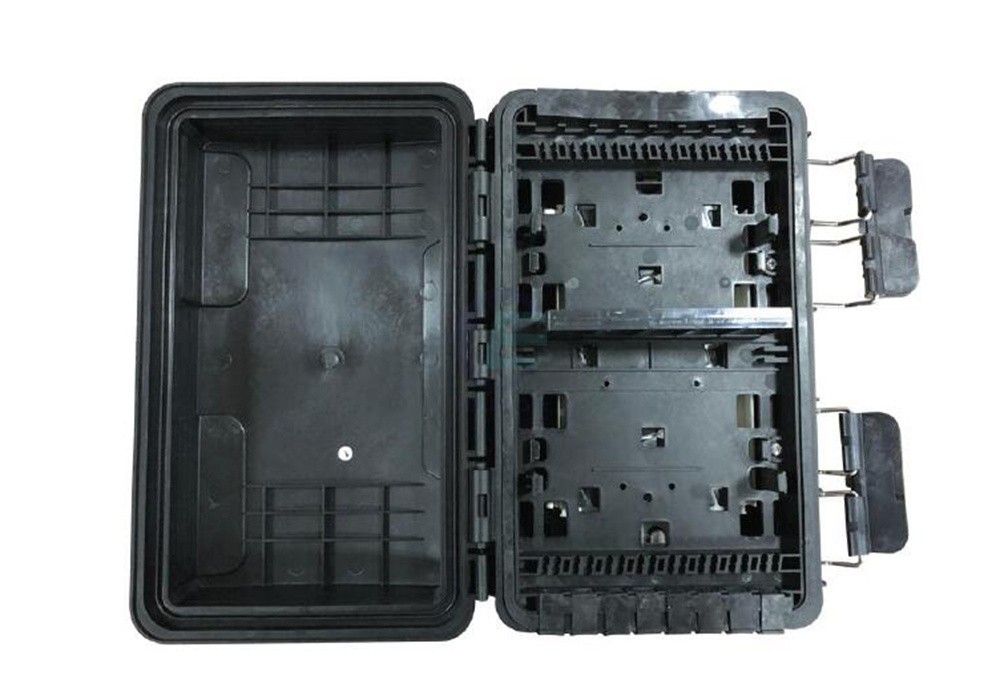

• 2 layers structure, easy for future expansion and maintenance
• Buckle lock design for the access for aerial installation

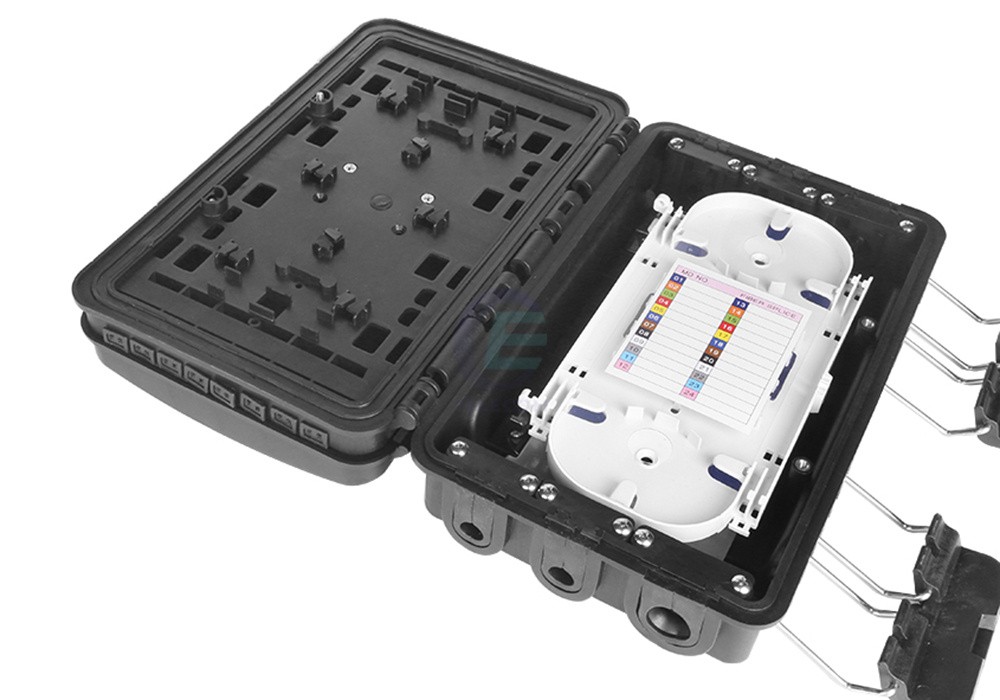

• 4 pcs of 24 core splice trays can be pre-installed.
• Support ADSS cable and self-support fiber cable
• IP65 Protection
Specifications:
|
Model |
EC18-I002 |
|
Dimensions (H x W x D.) |
285 x 175 x 90mm |
|
Type |
Inline Type (Horizontal Type) |
|
Port number of cable entrance |
2 for feeder cable (8-20mm) and 4 forbranch cable (5-16mm) |
|
Outlet Cable Diameter |
Flat:16 cables 2-3mm |
|
Capacity of Splice Tray |
24 fibers |
|
Quantity of Splice Tray |
4pcs |
|
Body Material |
PP |
|
Splice Tray Material |
ABS |
|
Application |
Aerial, Wall or Pole Mounting |
