Product Details
Datasheet DownloadFeatures：
• Outdoor application and good UV resistance.
• 4 inlets/ outlets for cables (10-16mm), 16 drop ports for 2*3mm cables.
• Drop cables can be distributed from the lower layer of closure for higher waterproof performance
• Adapter/ splitter: applicable to 18pcs SC adapters and 2pcs 1*8 or 1pc 1*16 splitters

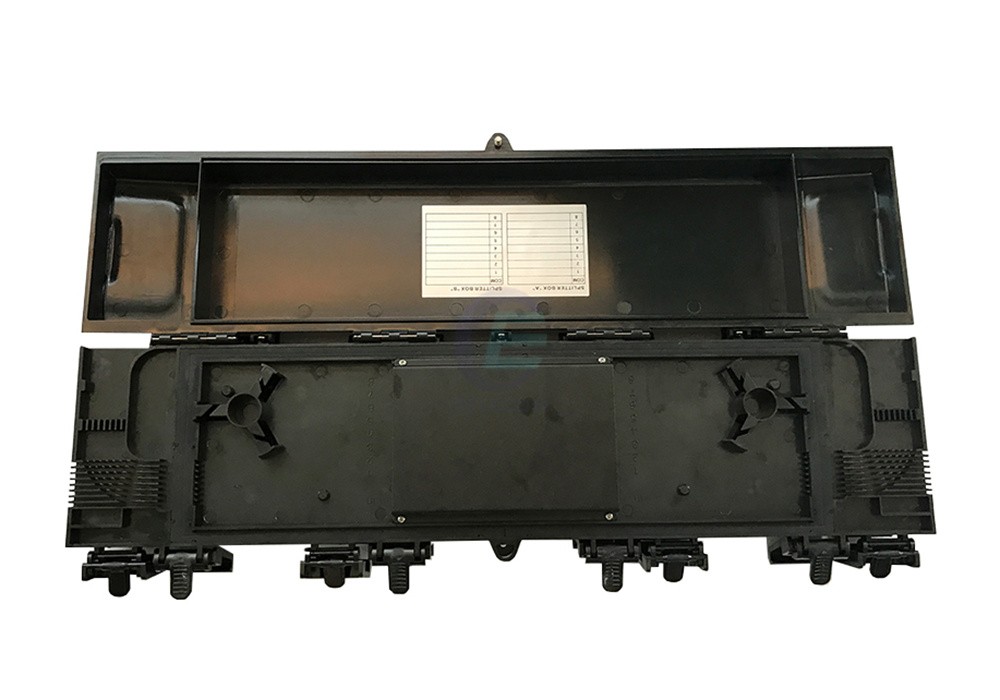

• 2 layers structure, the lower layer for fusion splicing; the upper layer for splitting and distribution
• Buckle lock design for the access for aerial installation
• Well-structured inner design facilitates the field operation
• Support ADSS cable and self-support fiber cable
• IP55 Protection
Specifications:
|
Model |
EC18-I003 |
|
Dimensions (H x W x D) |
600 x 155 x 90mm |
|
Type |
Inline Type (Horizontal Type) |
|
Port number of cable entrance |
4 Ports |
|
Outlet Cable Diameter |
Flat:16 cables 2-3mm |
|
Capacity of Splice Tray |
24 fibers |
|
Quantity of Splice Tray |
4pcs |
|
Quantity of splitter |
2pcs of 1*8 or 1pc of 1*16 |
|
Body Material |
PP |
|
Splice Tray Material |
ABS |
|
Application |
Aerial Mounting |
