Product Details

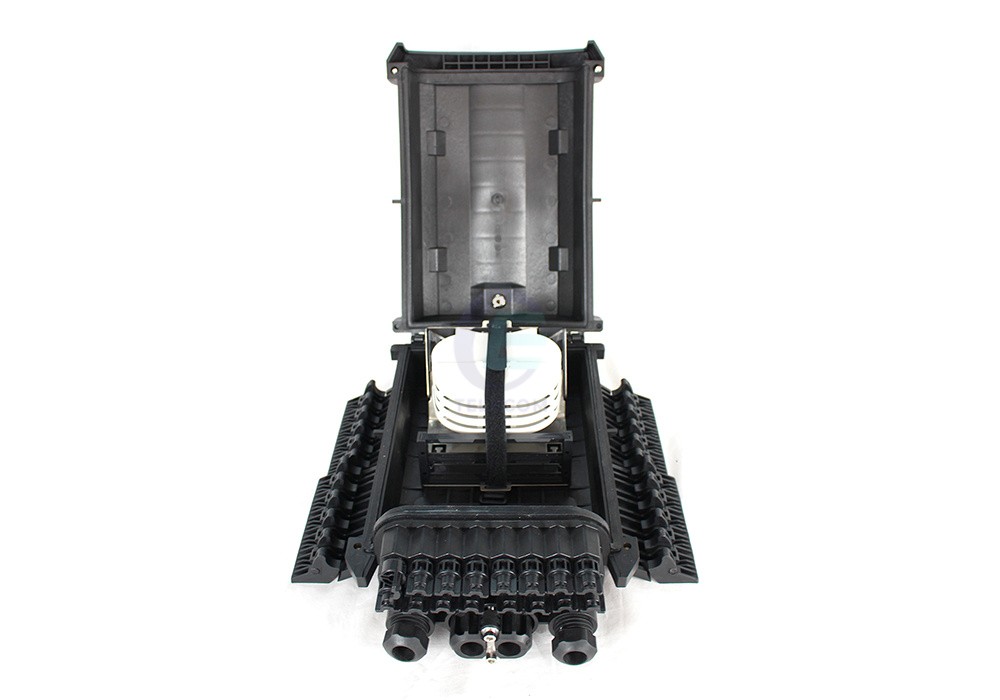

Datasheet DownloadFeatures：
• Outdoor application and good UV resistance.

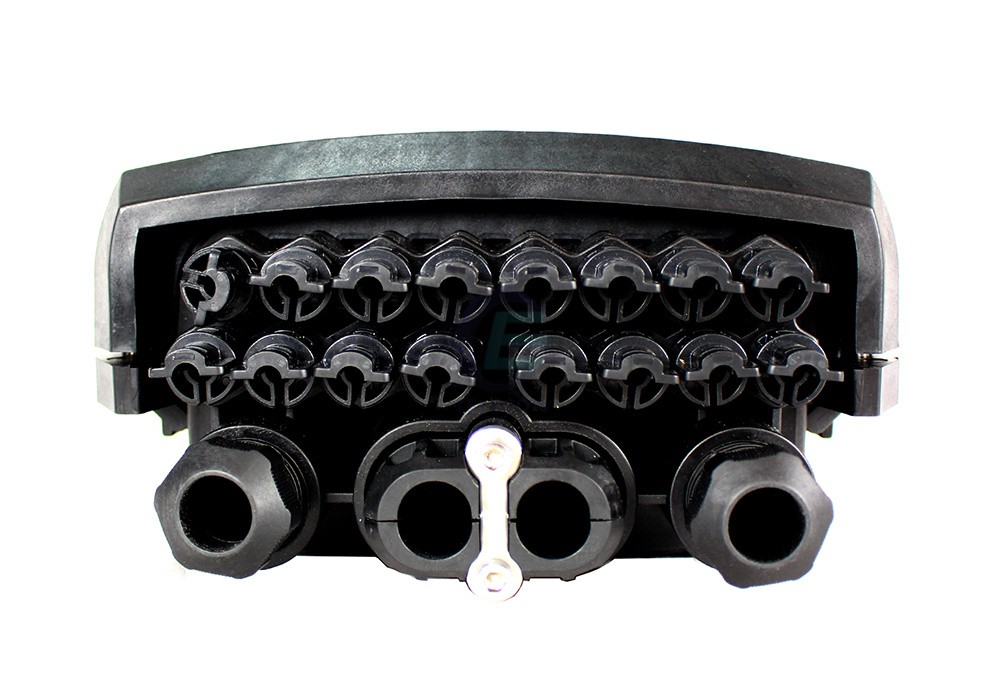

• 19 Ports in total: 3 inlets cables (1 uncut, 2 branch), Outlet 16 drop ports for 2*3mm cables or Φ 3 -7mm
• Adapter/ splitter: applicable to 16pcs SC adapters and 2pcs 1*8 mini type splitter
• Screw-free hinged type; Mechanical seal for box body; Re-openable

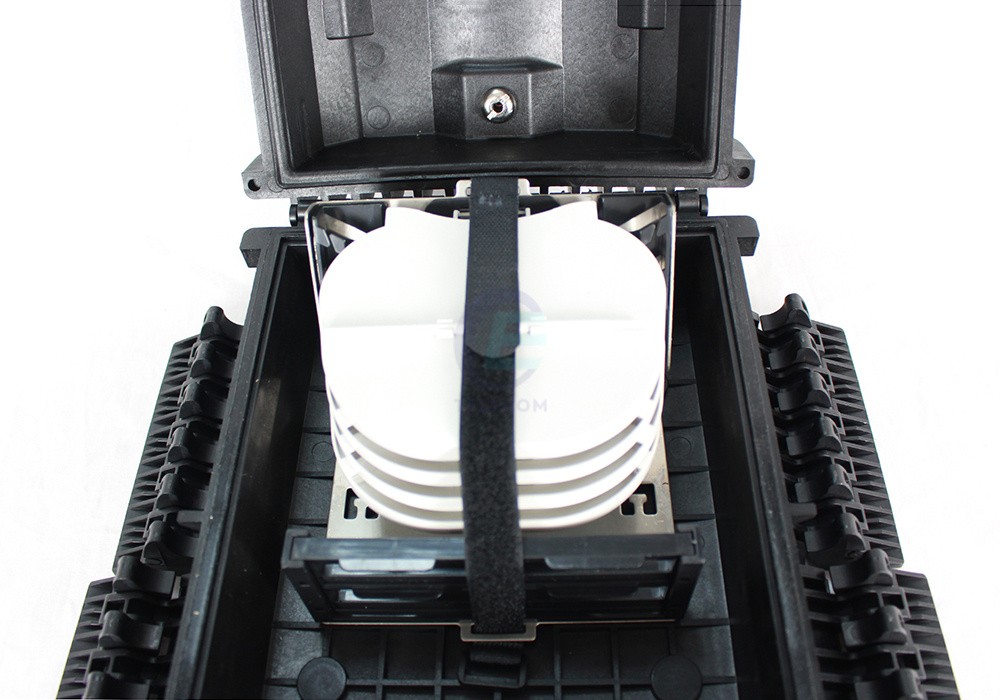

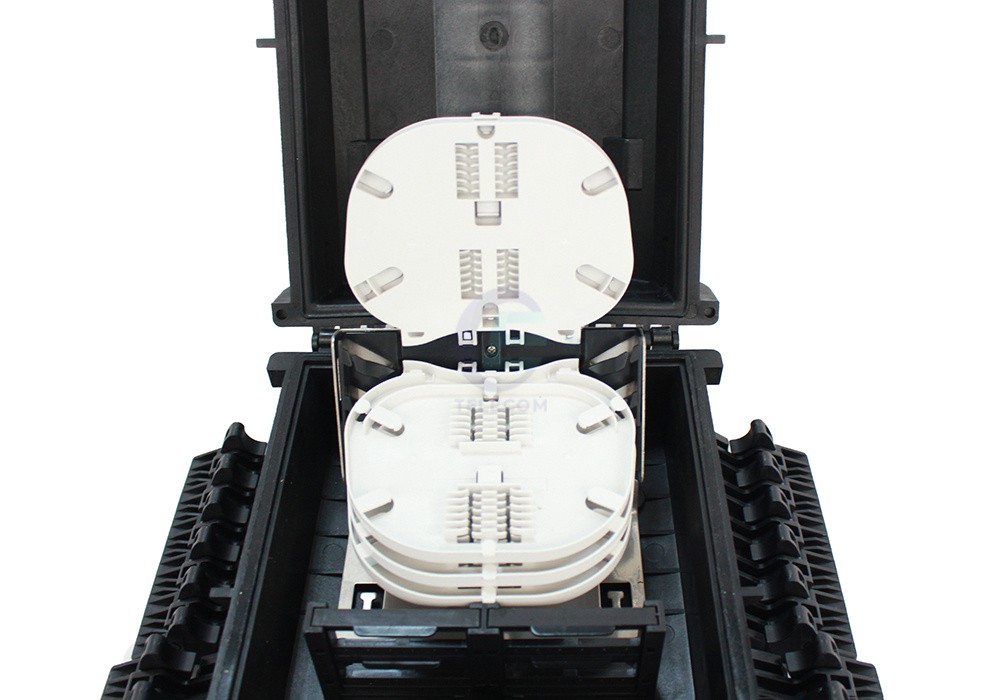

• Splice trays connected by hinges, enables the fiber operation on one tray without affecting the others; Fibers can be flexibly shifted from one tray to another for splicing
• IP68 Protection
Specifications:
|
Model |
EC18-I008 |
|
Dimensions (H x W x D) |
385 x 245 x 130mm |
|
Type |
Inline Type (Horizontal Type) |
|
Port number of cable inlet |
3 Ports (1 uncut, 2 branch Φ 8 - 17.5mm) |
|
Port number of cable outlet |
16 cables 2-3mm or Φ 3 - 7mm) |
|
Capacity of Splice Tray |
24 fibers |
|
Quantity of Splice Tray |
4pcs |
|
Quantity of splitter |
2pcs of 1*8 mini type splitter |
|
Body Material |
PP |
|
Splice Tray Material |
ABS |
|
Application |
Pole or Wall Mounting |
