Product Details
Datasheet DownloadFeatures：
• Outdoor application and good UV resistance.

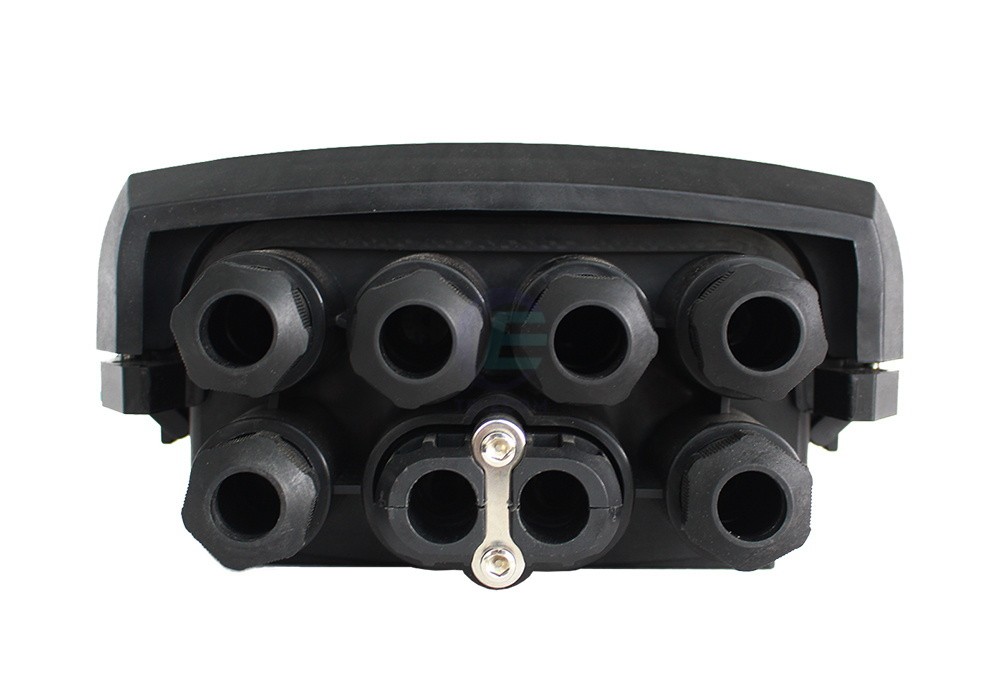

• 7 Ports in total: 1 uncut 6 round cables
• Applicable to 12pcs of 1:8 mini type splitter

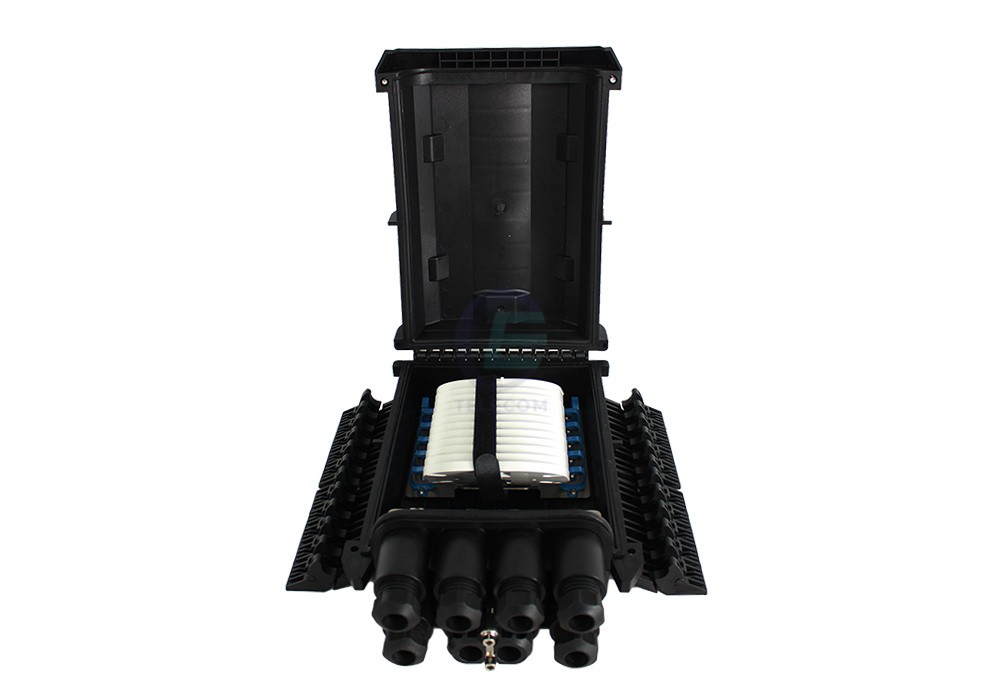

• Screw-free hinged type; Mechanical seal for box body; Re-openable

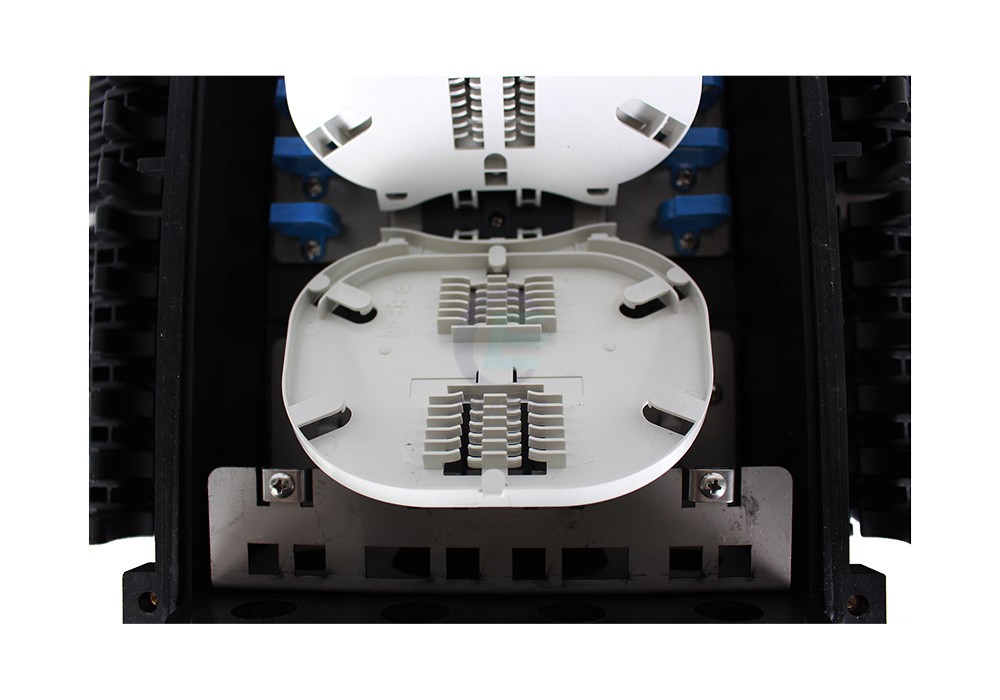

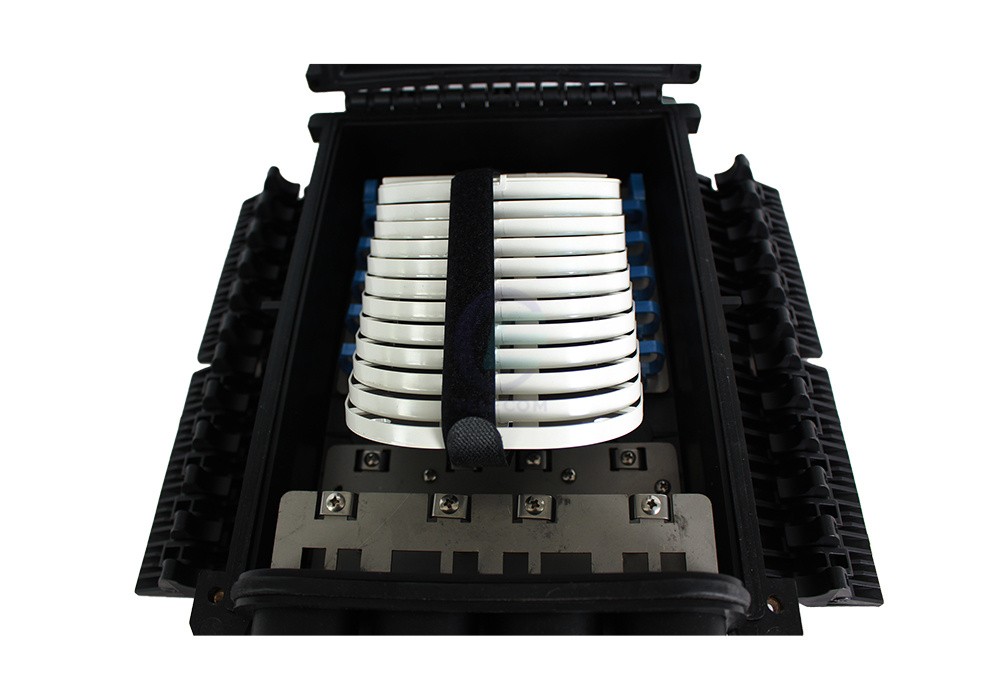

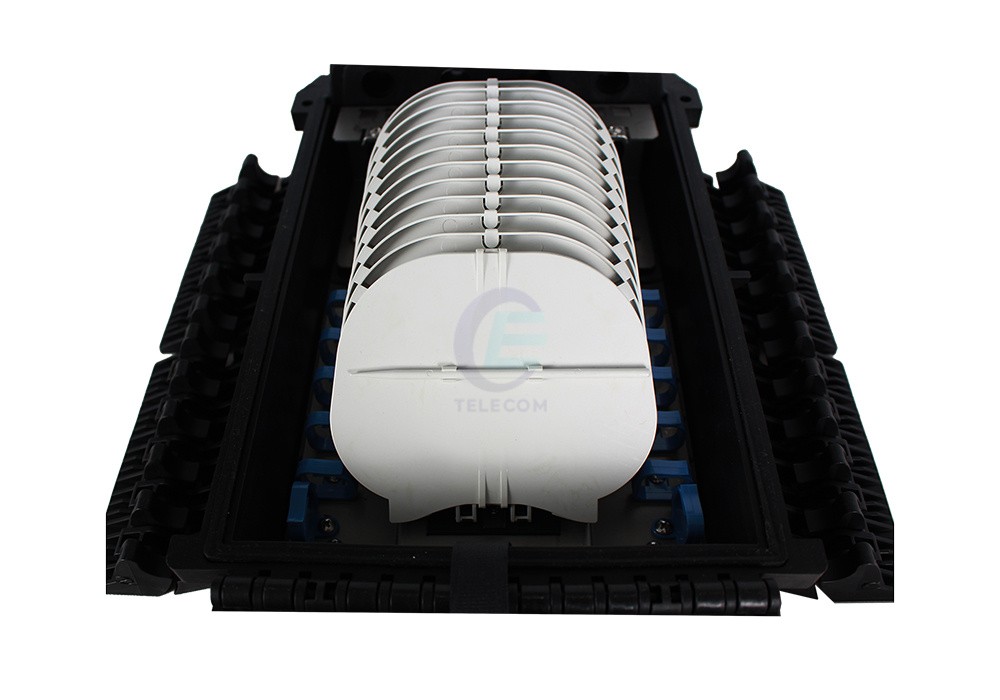

• Splice trays connected by hinges, enables the fiber operation on one tray without affecting the others; Fibers can be flexibly shifted from one tray to another for splicing
• IP68 Protection
Specifications:
|
Model |
EC18-I009 |
|
Dimensions (H x W x D) |
385 x 245 x 130mm |
|
Type |
Inline Type (Horizontal Type) |
|
Port number of cable inlet/ Outlet |
7 Ports (1 uncut, 6 round Φ 8 - 17.5mm) |
|
Capacity of Splice Tray |
24 fibers |
|
Quantity of Splice Tray |
12pcs |
|
Quantity of splitter |
12pcs of 1*8 mini type splitter |
|
Body Material |
PP |
|
Splice Tray Material |
ABS |
|
Application |
Pole or Wall Mounting |
