Product Details
Datasheet DownloadFeatures：
• Low insertion loss
• High return loss
• Stable capability and high reliability
• Boots in a variety of colors
• PVC, LSZH/ OFNP jacket for choose
Specifications:
|
Specification |

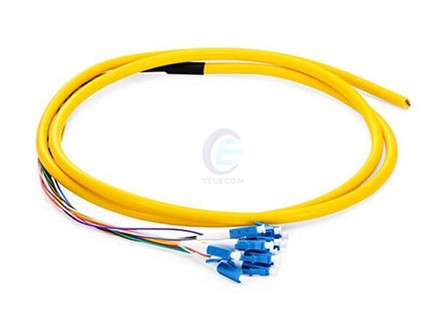

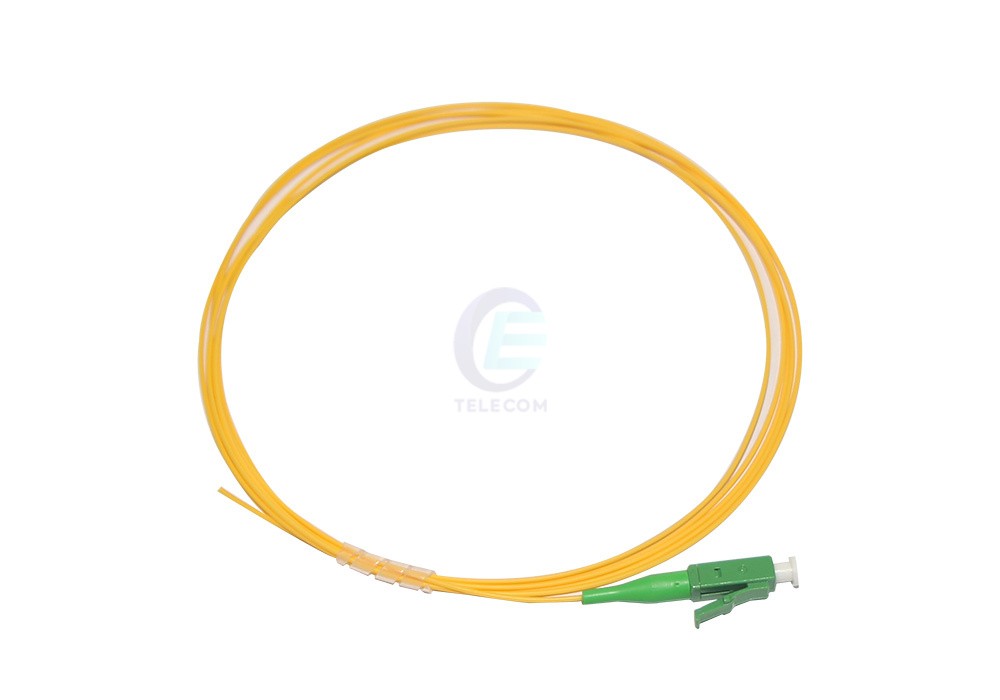

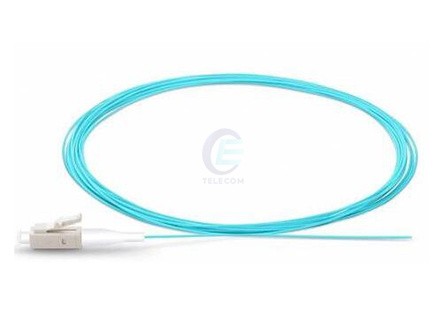

LC Pigtail |
||
|
Single-mode |
Multi-mode |
||
|
UPC |
APC |
PC |
|
|
Insertion Loss (dB) |
≤0.25 |
≤0.3 |
≤0.3 |
|
Return Loss (dB) |
≥50 |
≥55 |
≥20 |
|
Fiber Type |
G652D, G655C, G657A1, G657A2, OM1, OM2, OM3, OM4 |
||
|
Fiber Count |
Simplex, 12FO |
||
|
Cable Diameter |
0.9mm, 2.0mm, 3.0mm |
||
|
Jacket Material |
PVC, LSZH or customized |
||
|
Jacket Color |
OS1, OS2 (Yellow) OM1, OM2 (Orange) OM3 (Aqua) OM4 (Aqua or Violet) |
||
|
Operationg Temperature |
-20 ~ +70℃ |
||
|
Storage Temperature |
-40 ~ +80℃ |
||
|
Tensile Strength |
≥60N |
||
