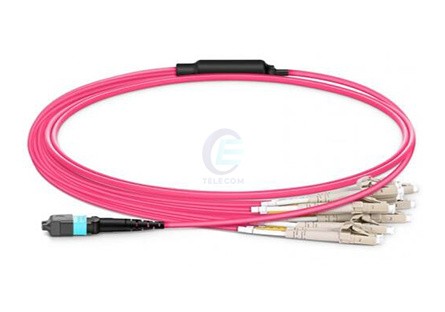

Product Details
Datasheet DownloadFeatures：
• Insertion loss type available in Standard, Elite / Low Loss
• Fiber count available in 8, 12, 16, 24
• MTP/MPO connector type available in Male, Female
• Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
• Cable jacket type available in OFNR, LSZH, OFNP
• Fanout length available in 0.5m, 1m, etc.
• Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
• Single-fiber connector type available in LC, SC with APC or UPC polishing type
• Overall cable length available in 1 to 999 meters
• Factory terminated & tested with guaranteed quality
• High density to dramatically save space
Specifications:
MTP/ MPO Termination
|
Specifications |
MTP/ MPO Termination |
|||
|
Single-mode |
Multi-mode |
|||
|
UPC |
APC |
PC |
||
|
|
Standard |
Elite |
Standard |
Elite |
|
Insertion Loss (dB) |
≤0.7 |
≤0.35 |
≤0.7 |
≤0.35 |
|
Return Loss (dB) |
≥50 |
≥55 |
≥20 |
|
|
Fiber Type |
G652D, G657A1, G657A2, OM1, OM2, OM3, OM4 |
|||
|
Fiber Count |
8, 12, 16, 24 |
|||
|
Cable Diameter |
3.0mm, 3.6mm |
|||
|
Jacket Material |
PVC, LSZH or customized |
|||
|
Jacket Color |
OS1, OS2 (Yellow) OM1, OM2 (Orange) OM3 (Aqua) OM4 (Aqua or Violet) |
|||
|
Operationg Temperature |
-10 ~ +70℃ |
|||
|
Storage Temperature |
-40 ~ +80℃ |
|||
|
Tensile Strength |
≥60N |
|||
LC, SC, FC Termination
|
Specifications |
LC, SC, FC Termination |
||
|
Single-mode |
Multi-mode |
||
|
UPC |
APC |
PC |
|
|
Insertion Loss (dB) |
≤0.3 |
≤0.3 |
≤0.3 |
|
Return Loss (dB) |
≥50 |
≥55 |
≥20 |
|
Fiber Type |
G652D, G657A1, G657A2, OM1, OM2, OM3, OM4 |
||
|
Cable Diameter |
0.9mm, 2.0mm, 3.0mm |
||
|
Jacket Material |
PVC, LSZH or customized |
||
|
Jacket Color |
OS1, OS2 (Yellow) OM1, OM2 (Orange) OM3 (Aqua) OM4 (Aqua or Violet) |
||
|
Operationg Temperature |
-10 ~ +70℃ |
||
|
Storage Temperature |
-40 ~ +80℃ |
||
|
Tensile Strength |
≥60N |
||
