Product Details
Datasheet DownloadFeatures：

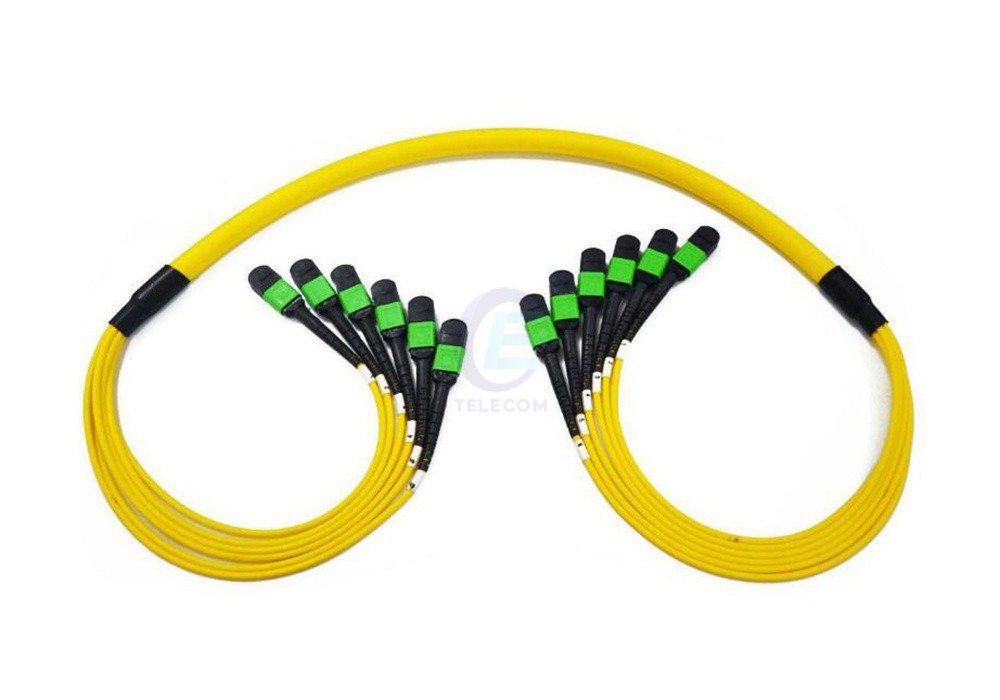

• Distribute some or all of the fibers in a trunk cable to other areas
• Applicable in backbone installation
• Fiber counts available in 12 / 16 / 24 / 32 / 36 / 48 / 72 / 96 / 144-fibers
• Support different applications and field requirements
• Round & mini-core cable structure eliminates bend sensitivity
• Pulling eye design fits for different installation environments
• Options of pinned (Male type) non pinned (Female type) on connector ends
• High flexibility for different equipment
• Available in different fiber modes including single-mode (OS1, OS2) & multimode (OM1 ~ OM4) with customized length and structure
• Satisfies client's needs in different industries
Specifications:
|
Specification |
MTP/ MPO to MTP/ MPO |
|||
|
Single-mode |
Multi-mode |
|||
|
UPC |
APC |
PC |
||
|
Level |
Standard |
Elite |
Standard |
Elite |
|
Insertion Loss (dB) |
≤0.7 |
≤0.35 |
≤0.7 |
≤0.35 |
|
Return Loss (dB) |
≥50 |
≥55 |
≥20 |
|
|
Fiber Type |
G652D, G655C, G657A1, G657A2, OM1, OM2, OM3, OM4 |
|||
|
Fiber Count |
8, 12, 16, 24 |
|||
|

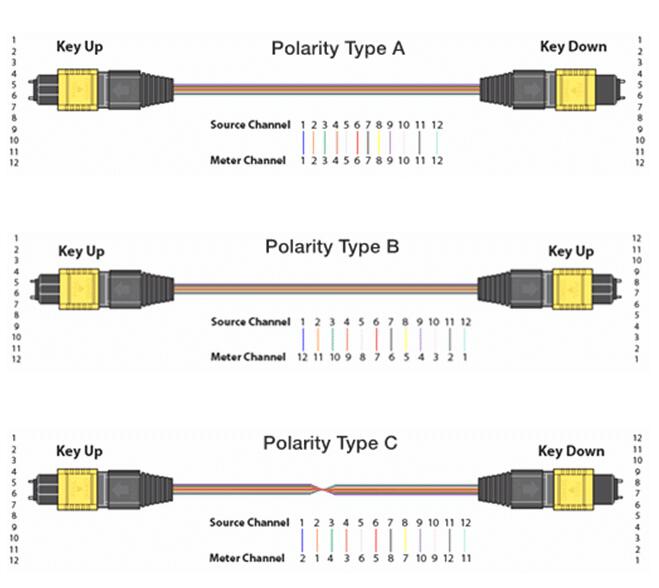

Polarity |
Type A, B or C |
|||
|
Cable Diameter |
3.0mm, 3.6mm |
|||
|
Jacket Material |
PVC, LSZH or customized |
|||
|
Jacket Color |
OS1, OS2 (Yellow) OM1, OM2 (Orange) OM3 (Aqua) OM4 (Aqua or Violet) |
|||
|
Operationg Temperature |
-10 ~ +70℃ |
|||
|
Storage Temperature |
-40 ~ +80℃ |
|||
|
Tensile Strength |
≥60N |
|||
