Fiber Optic Fast Connector Type B

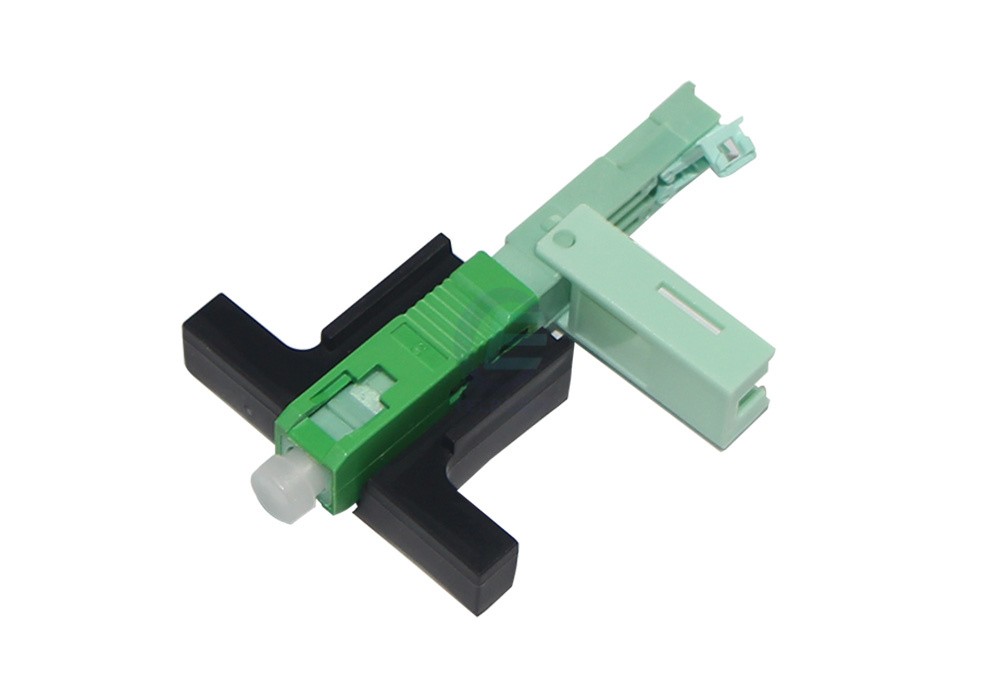

Fiber Optic Fast Connector (Type B)

Overview:
Quick Assembly Connector (also named “No-Polish Connector”, “Pre-polish Connector” or “Fast Connector”) is an easy-to-install device. No tool or jig is required. It is universal for 250um/ 900um/ 2.0mm/ 3.0mm/ Flat Cable. It was designed for fast termination with a pre-polished connector. Using V groove technology, it requires no epoxy. With a transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for an outside plant or inside a building.
Click:426

Service Online：

Product Details

Datasheet Download

Features：

• Based on the pluggable non-preset tube technology
• Precision ceramic components with co-axial self-centering; Excellent and durable optical property
• Optical fiber fits axially inelastic way and avoids completely any false connect
• Integrated protection of the casing to withstand harsh user environment.
• Directly connectable with ONU without any optical socket, which reduces FTTH cost.


Specifications:

Type Model

Fast Connector Type B

Insertion Loss (Typical/ Max) dB

0.2/ 0.4

Return Loss (Min) dB

UPC

40

APC

55

One-Time Assembly Yield

≥98%

Tension Strength

≥30N

Cable Type

2.0*3.0mm

Operating Temperature

-5~ + 70℃

Storage Temperature

-40~ +85℃
