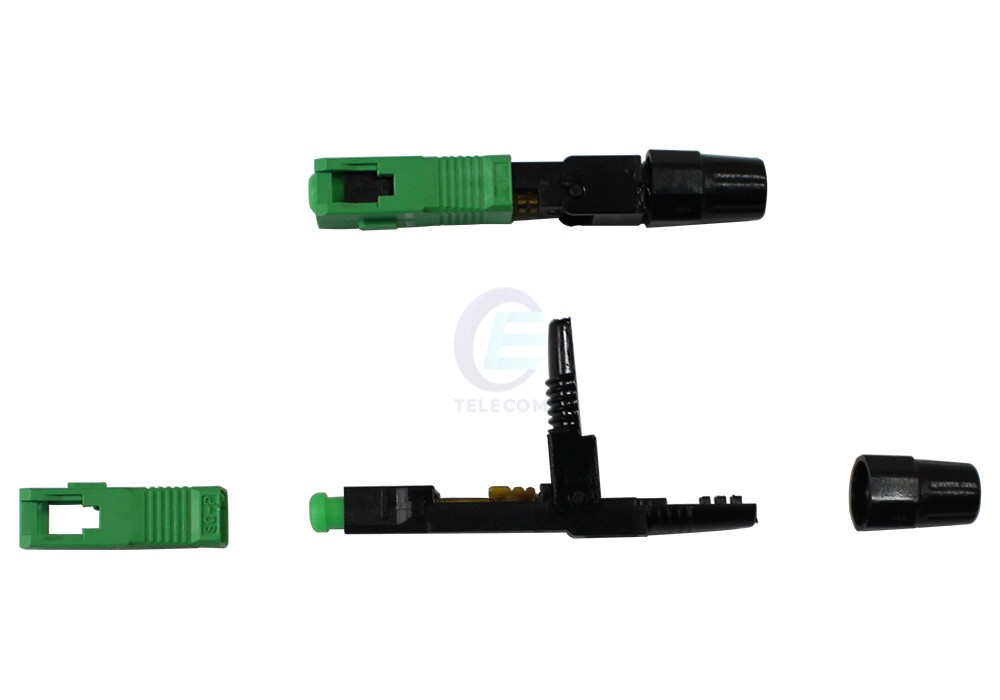

Fiber Optic Fast Connector Type C

Fiber Optic Fast Connector (Type C)

Overview:
Quick Assembly Connector (also named “No-Polish Connector”, “Pre-polish Connector” or “Fast Connector”) is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector.
Click:454

Service Online：

Product Details

Datasheet Download

Features：

• Based on the pluggable non-preset tube technology
• Precision ceramic components with co-axial self-centering; Excellent and durable optical property
• Optical fiber fits axially inelastic way and avoids completely any false connect
• Integrated protection of the casing to withstand harsh user environment.
• Directly connectable with ONU without any optical socket, which reduces FTTH cost.


Specifications:

Type Model

Fast Connector Type C

Insertion Loss (Typical/ Max) dB

0.25/ 0.4

Return Loss (Min) dB

UPC

45

APC

55

Tension Strength

30N

Cable Type

2.0*3.0mm drop cable;2.0mm/ 3.0mm

Operating Temperature

-5~ + 70℃

Storage Temperature

-40~ +85℃
