Fiber Optic Fast Connector Type E

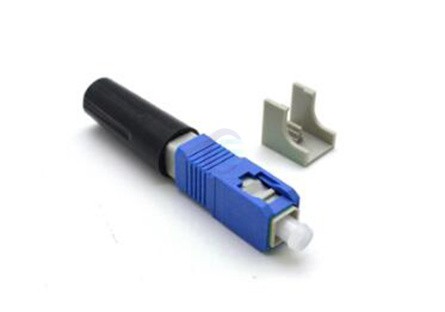

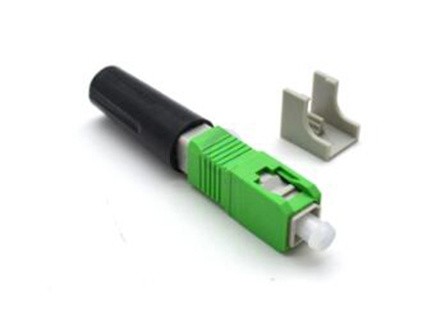

Fiber Optic Fast Connector (Type E)

Overview:
The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Click:512

Service Online：

Product Details

Datasheet Download

Features：

• Quick and easy fiber termination
• Reusable termination capability (up to 5 times)
• High success rate of connections
• No special tools required


Specifications:

Type Model

Fast Connector Type E

Insertion Loss (Typical/ Max) dB

0.3/ 0.4

Return Loss (Min) dB

UPC

50

APC

55

One-Time Assembly Yield

≥98%

Tension Strength

30N

Cable Type

2.0*3.0mm drop cable

Operating Temperature

-5~ + 70℃

Storage Temperature

-40~ +85℃
