Overview:

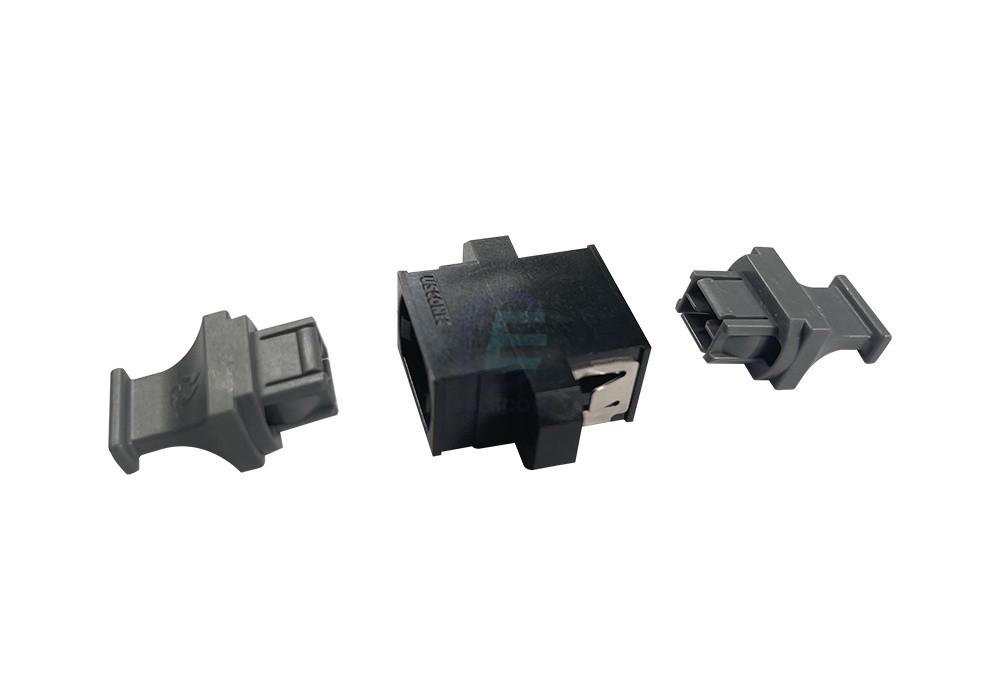

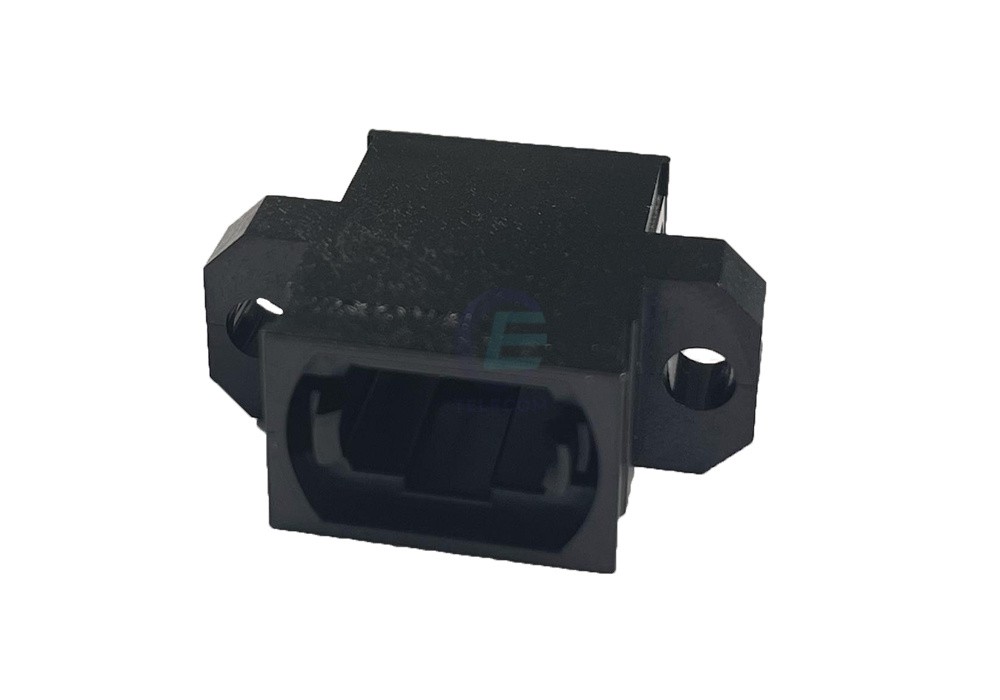

The black colored MPO/ MTP adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MPO/ MTP Connector from 4 fiber to 72 fiber, widely used in trunk cabling and cassettes. This adapter meets appropriate standards and is perfect for your parallel optics and MPO/ MTP adapter needs.
Click:539

Service Online：

Product Details

Datasheet Download

Features:

High size precision

Fast and easy connection

Lightweight and durable plastic housings

One-piece coupler design maximizes coupling strength while minimizing debris generation

Color-coded, allowing for easy fiber mode identification

High wearable

Good repeatability



Specifications:

Specification

MPO/ MTP Fiber Optic Adapter

Single-mode

Multi-mode

UPC

APC

PC

Insertion Loss (dB)

≤0.35

≤0.35

≤0.35

Return Loss (dB)

≥50

≥55

≥20

Body Type

Simplex/ Full Flanged/ Flangeless

Key Orientation:

Opposed Key/ Aligned Key

Fiber Mode

Singlemode/ Multimode

Color

Black/ Grey

Operationg Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +80℃

Durability

≥500 times
