FC Connector

Overview:

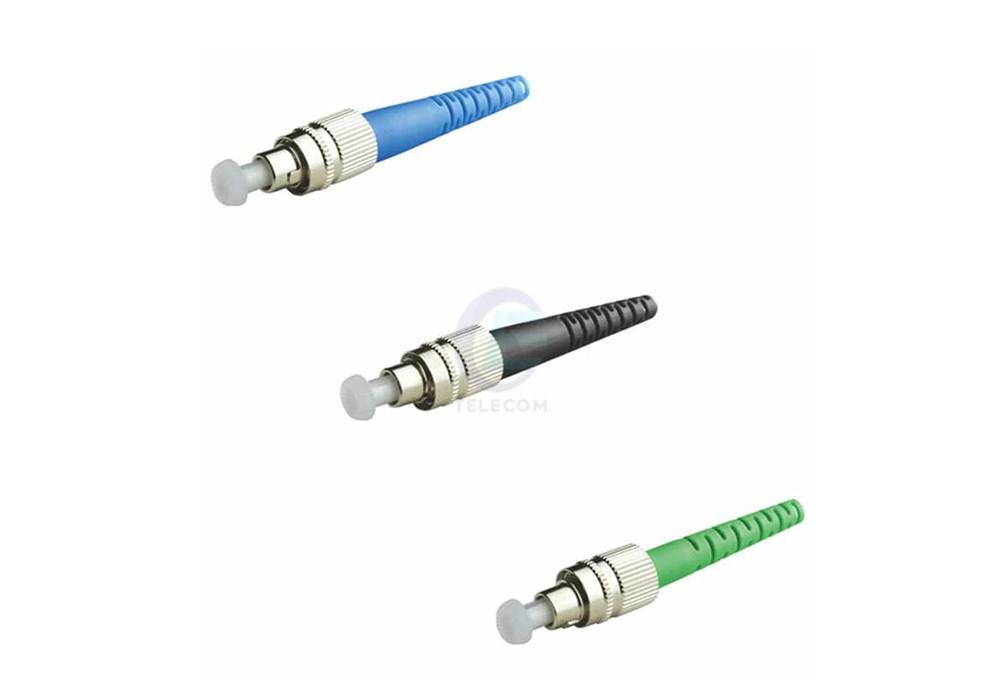

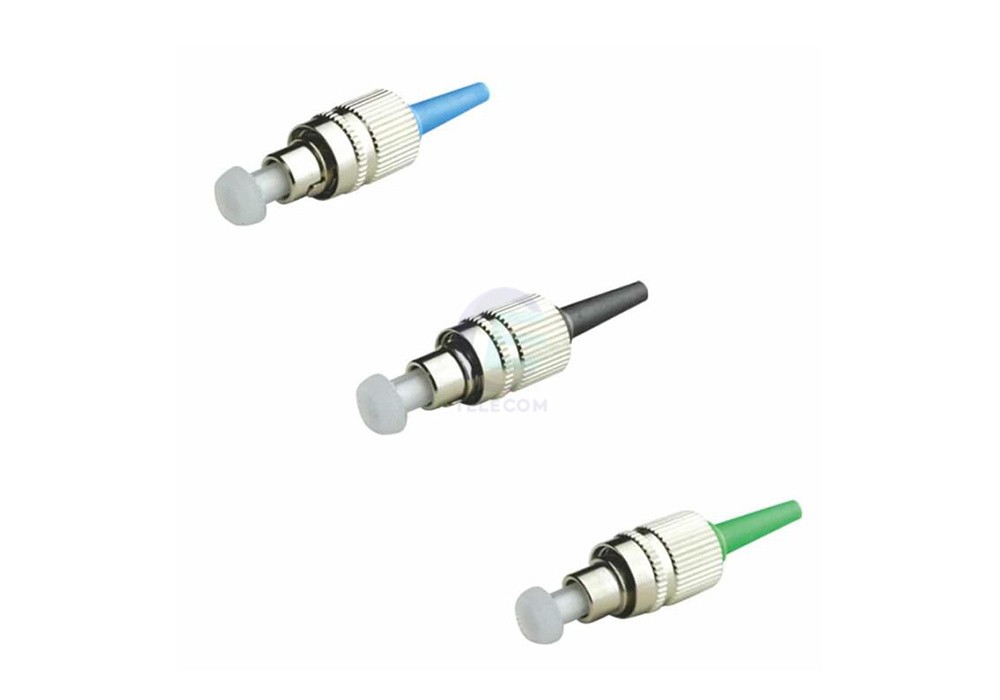

Fiber optic FC connector is features a 2.5mm ferrule and a threaded metal coupling nut, for a secure connection in high vibration environments and in laboratory testing for consistent results. The FC Connectors are available for single mode UPC with blue boots, APC with green boots and multimode PC with black boots suitable for 900µm, 2mm or 3mm cable diameters.
Click:519

Service Online：

Product Details

Datasheet Download

Features:

Low insertion loss and back reflection capability

Precision anti rotation key for mechanical stability

Nickel plated metal body corrosion resistant

Zirconia ceramic ferrule available in several performance grades


Specifications:

Specification

FC Connector

Single-mode

Multi-mode

UPC

APC

PC

Insertion Loss (dB)

≤0.3

≤0.3

≤0.3

Return Loss (dB)

≥50

≥55

≥20

Fiber Count

Simplex

Boot Size

0.9mm, 2.0mm, 3.0mm

BootColor

Blue (UPC)

Green (APC)

Black (MM)

Operationg Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +80℃
