LC Connector

Overview:

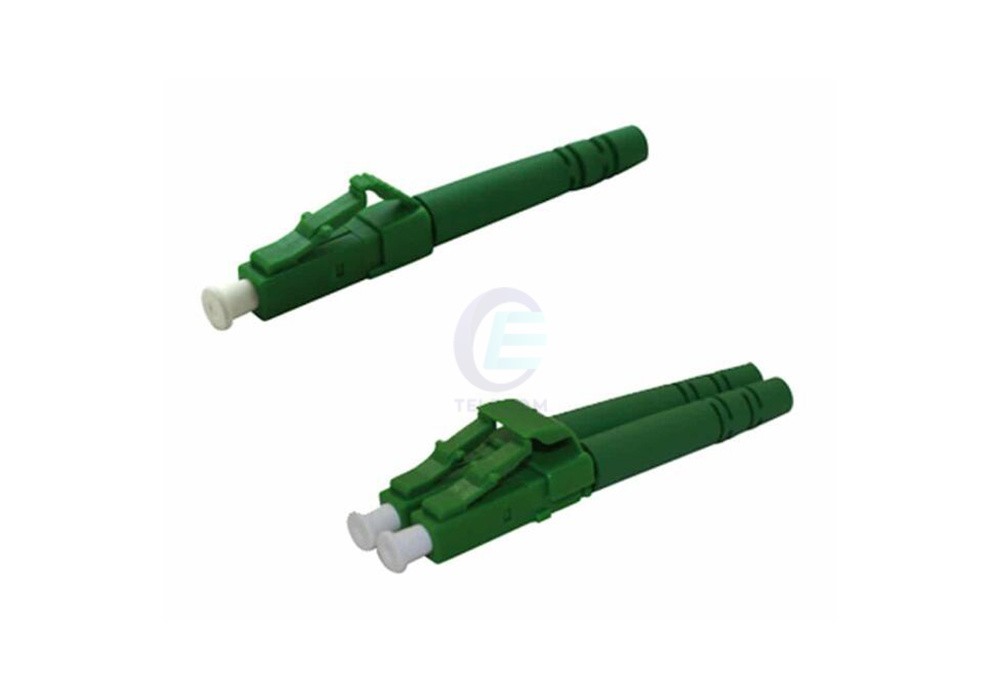

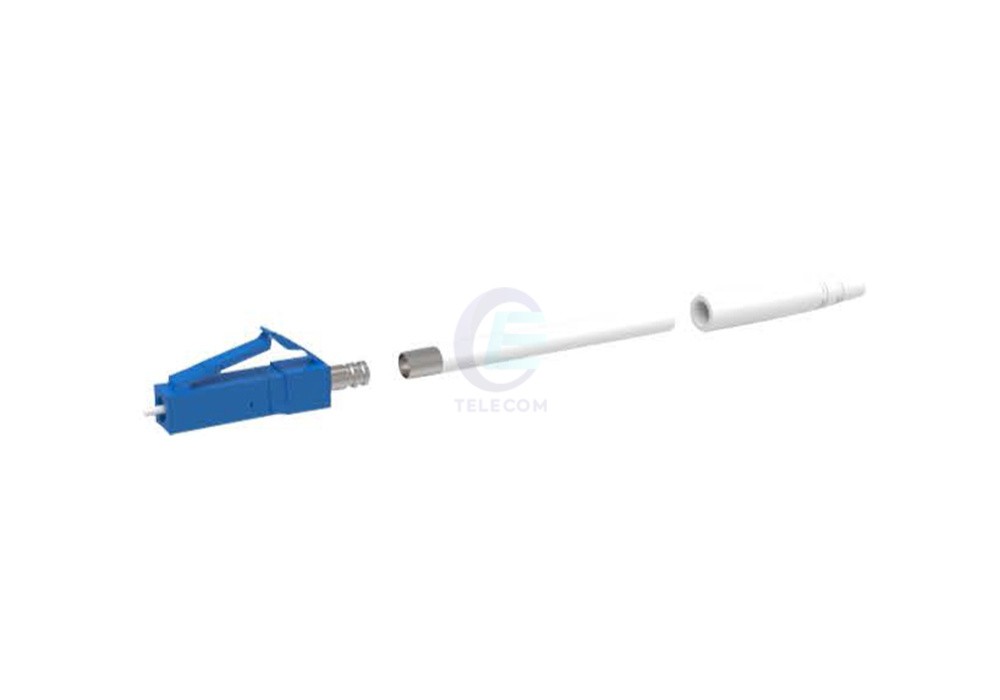

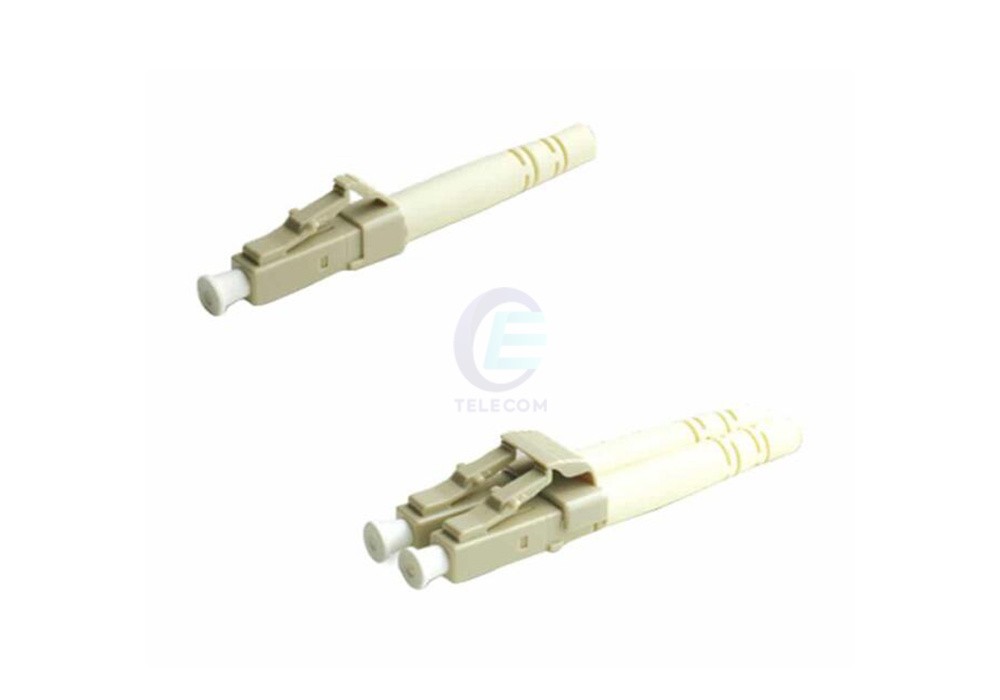

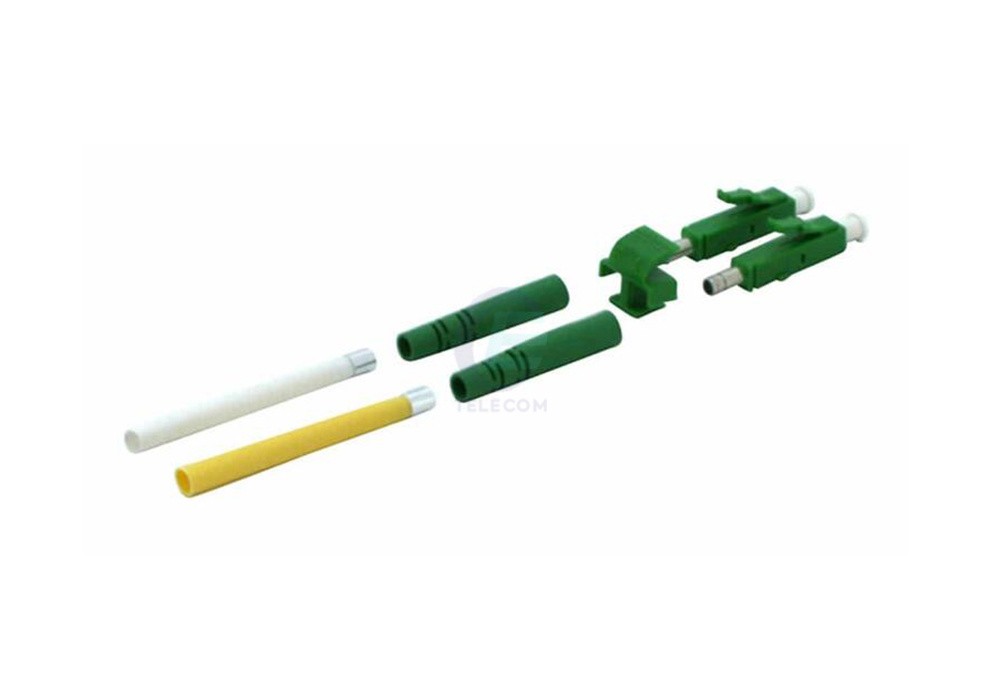

Fiber optic LC connector features a 1.25mm Zirconia ferrule in a small form factor (SFF) fiber optic connector housing with a snag free latch which gives an audible click upon engaging for reliable and high density connections. The LC connector is available in simplex and duplex (with clips) in standard colors including blue (single mode), green (single mode APC) and beige (multimode).
Click:470

Service Online：

Product Details

Datasheet Download

Features:

Low insertion loss and back reflection capability

A push-pull coupling mechanism for easy insertion and consistent connection

Connector housing and duplex clip available in different colors for easy identification

Zirconia ceramic ferrule available in several performance grades


Specifications:

Specification

LC Connector

Single-mode

Multi-mode

UPC

APC

PC

Insertion Loss (dB)

≤0.25

≤0.3

≤0.3

Return Loss (dB)

≥50

≥55

≥20

Fiber Count

Simplex/ Duplex

Boot Size

0.9mm, 2.0mm, 3.0mm

LC HousingColor

Blue (UPC)

Green (APC)

Beige (MM)

Operationg Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +80℃
