MPO MTP Connector

Overview:

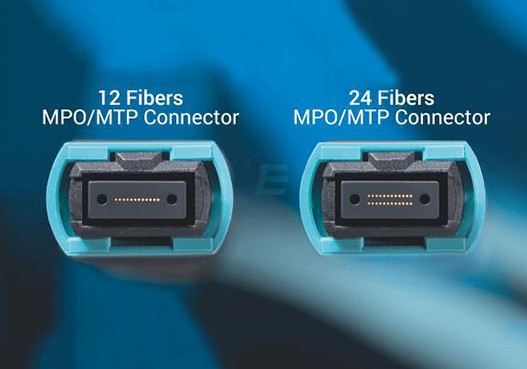

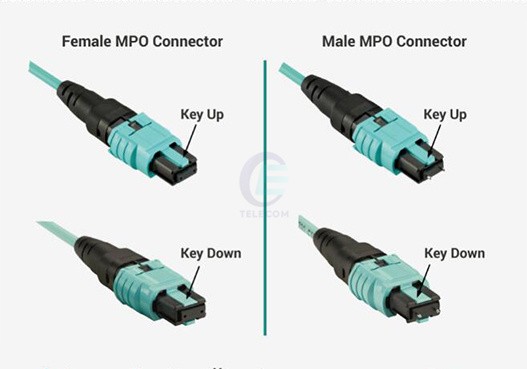

MPO/ MTP connectors are fiber optic connectors with multi fiber connectivity and a push on coupling, that’s why they are called MPO “multi-fiber push on”. MPO/ MTP connectors support higher bandwidth and higher density applications with 12 to 24 fiber count, which also can reach 48 or 72 in some limited applications. In addition, the next MPO/ MTP format will support 16 to 32 fiber connectors, which are required for 400 GB applications. There are two versions of MPO/ MTP: male (with pins) and female (without pins).
Click:325

Service Online：

Product Details

Datasheet Download

Features:

Terminates ribbon fiber or loose individual fibers

Designed for low loss and standard loss SM and MM applications

Patented elliptical guide pin tip to minimize ferrule debris

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Housing is removable for quick change of pin clamps and easy ferrule cleaning / re-polishing

Alignment achieved with high precision guide pins

No-epoxy housing design


Specifications:

Specification

MPO/ MTP Connector

Single-mode

Multi-mode

UPC

APC

PC

Level

Standard

Elite

Standard

Elite

Insertion Loss (dB)

≤0.7

≤0.35

≤0.7

≤0.35

Return Loss (dB)

≥50

≥55

≥20

Fiber Type

G652D, G655C, G657A1, G657A2, OM1, OM2, OM3, OM4

Fiber Count

8, 12, 16, 24

Gender

Male/ Female

Cable Diameter

3.0mm, 3.6mm

House Color

Yellow (UPC)

Green (APC)

Aqua (OM3, OM4)

Operationg Temperature

-10 ~ +70℃

Storage Temperature

-40 ~ +80℃

Spring Force

10N
