Overview:

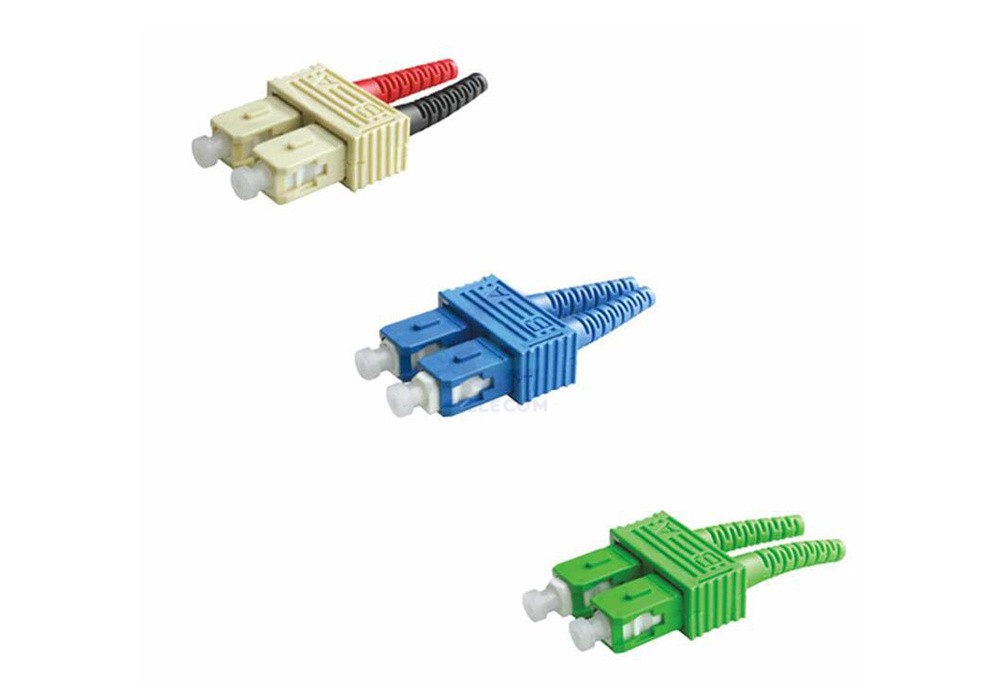

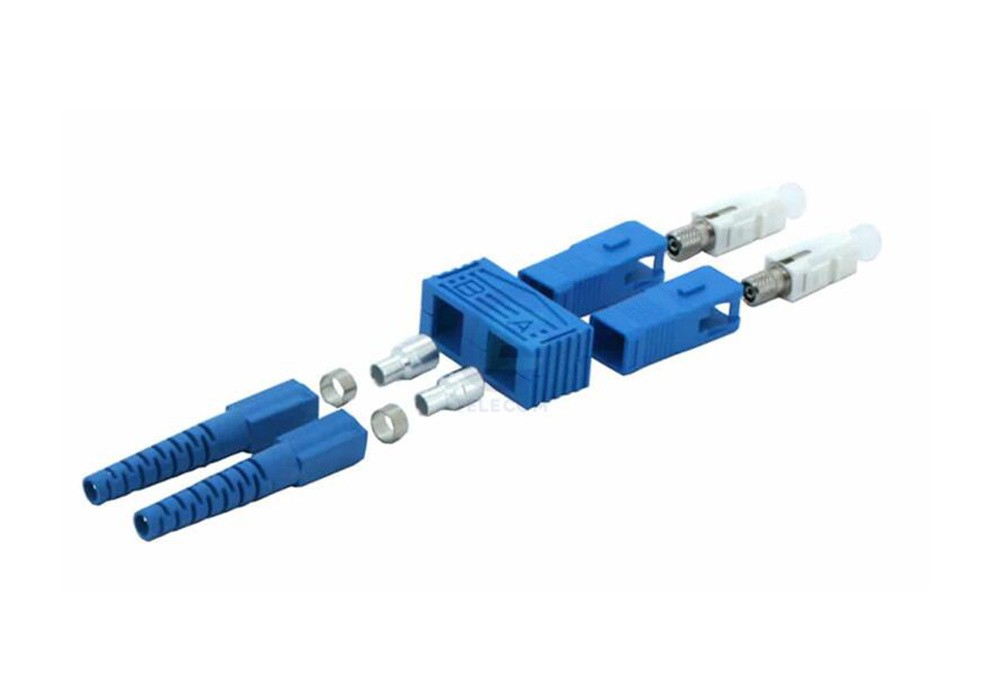

Fiber optic SC connector is widely used in single-mode and multimode applications for its excellent performance. It is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia ferrule. It features a snap-in (push-pull) connection design for quick patching of cables into rack or wall mounts. Two simplex SC connectors can be clipped together by a reusable duplex holding clip to create a duplex SC connector.
Click:322

Service Online：

Product Details

Datasheet Download

Features:

Low insertion loss and back reflection capability

A push-pull coupling mechanism for easy insertion and consistent connection

Connector housing and duplex clip available in different colors for easy identification

Zirconia ceramic ferrule available in several performance grades


Specifications:

Specification

SC Connector

Single-mode

Multi-mode

UPC

APC

PC

Insertion Loss (dB)

≤0.25

≤0.3

≤0.3

Return Loss (dB)

≥50

≥55

≥20

Fiber Count

Simplex/ Duplex

Boot Size

0.9mm, 2.0mm, 3.0mm

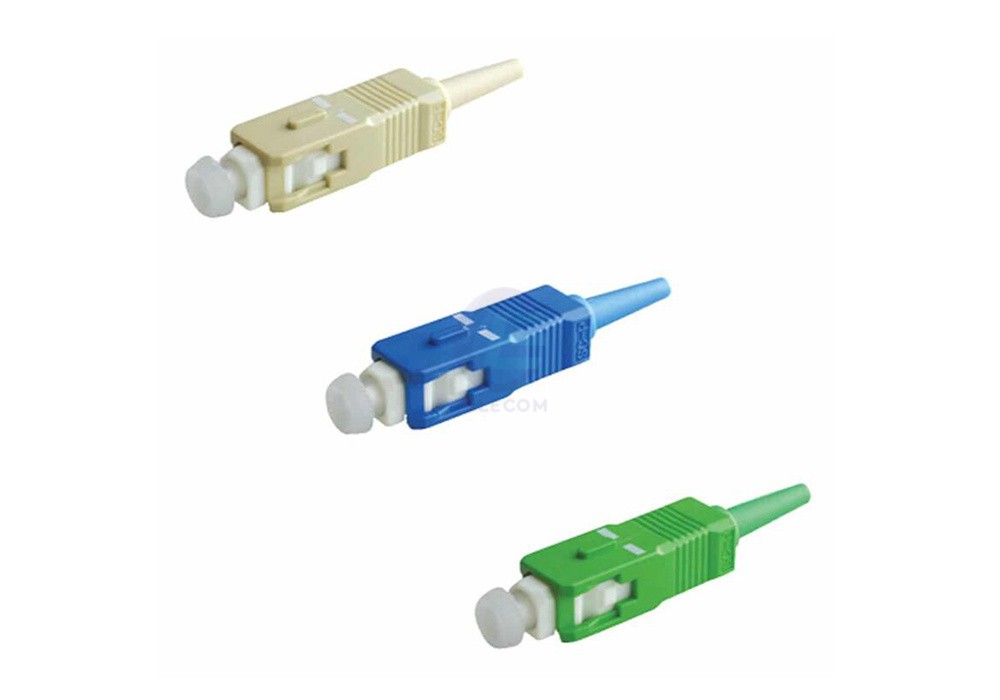

SC HousingColor

Blue (UPC)

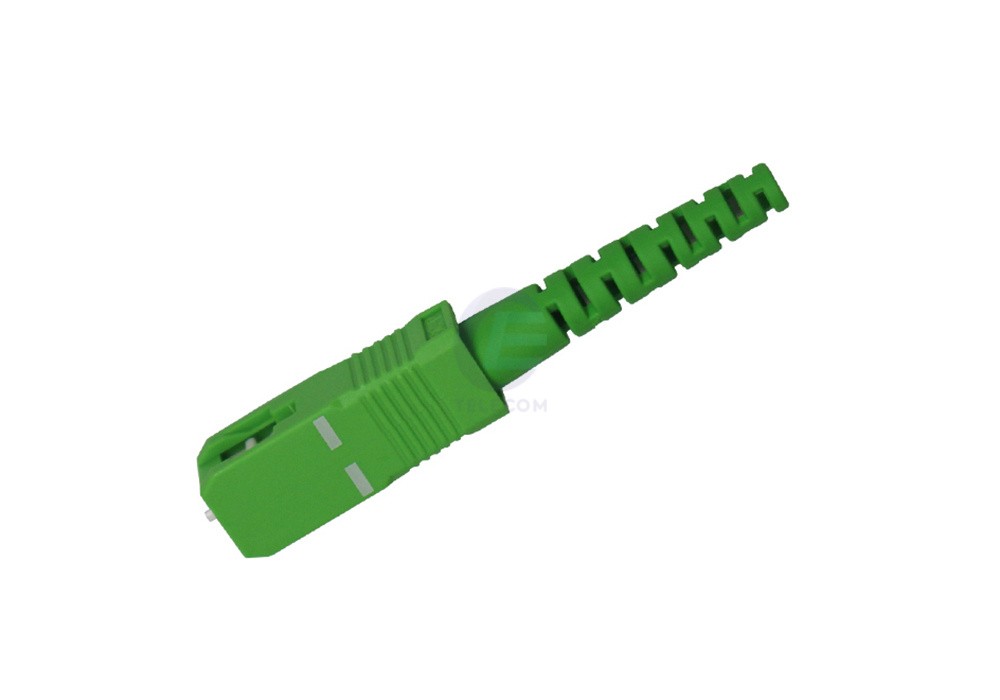

Green (APC)

Beige (MM)

Operationg Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +80℃
