Fiber Optic Splice Tray (EC-FST-06)

Overview:

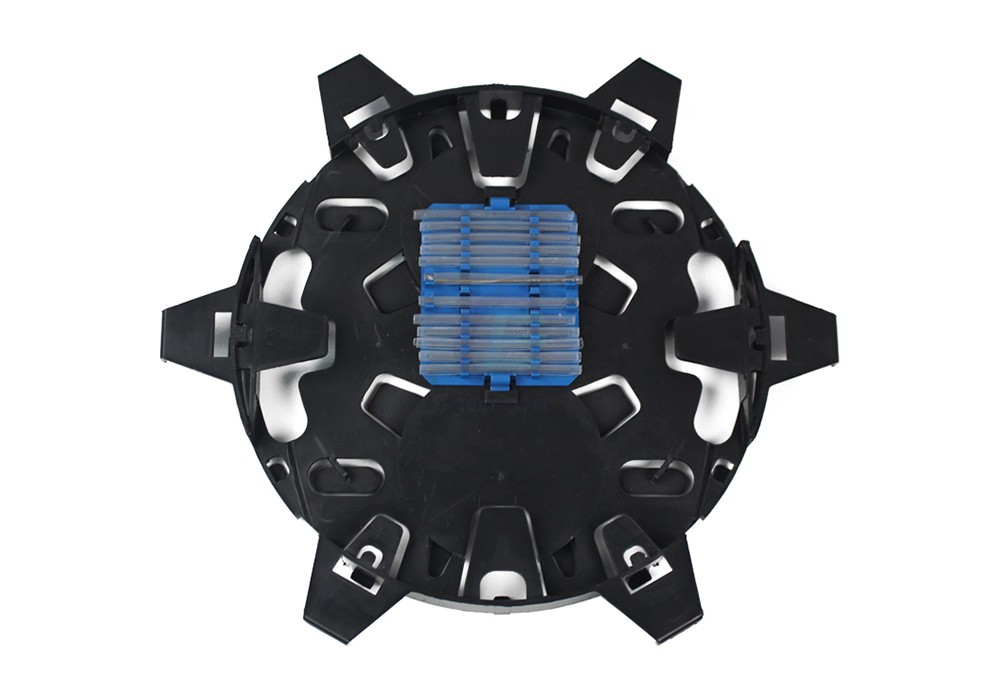

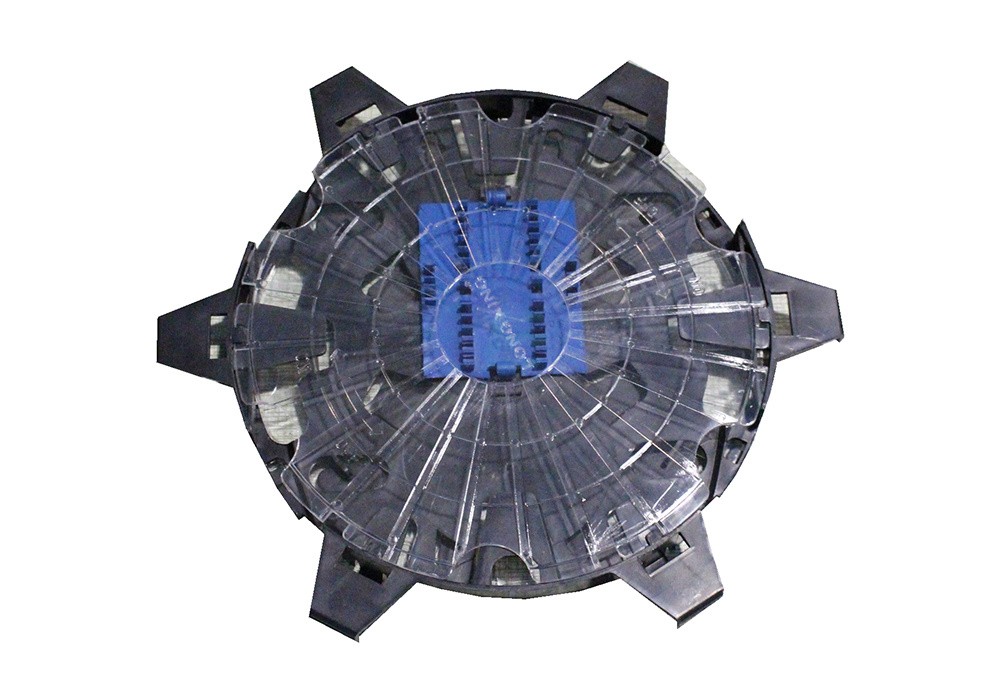

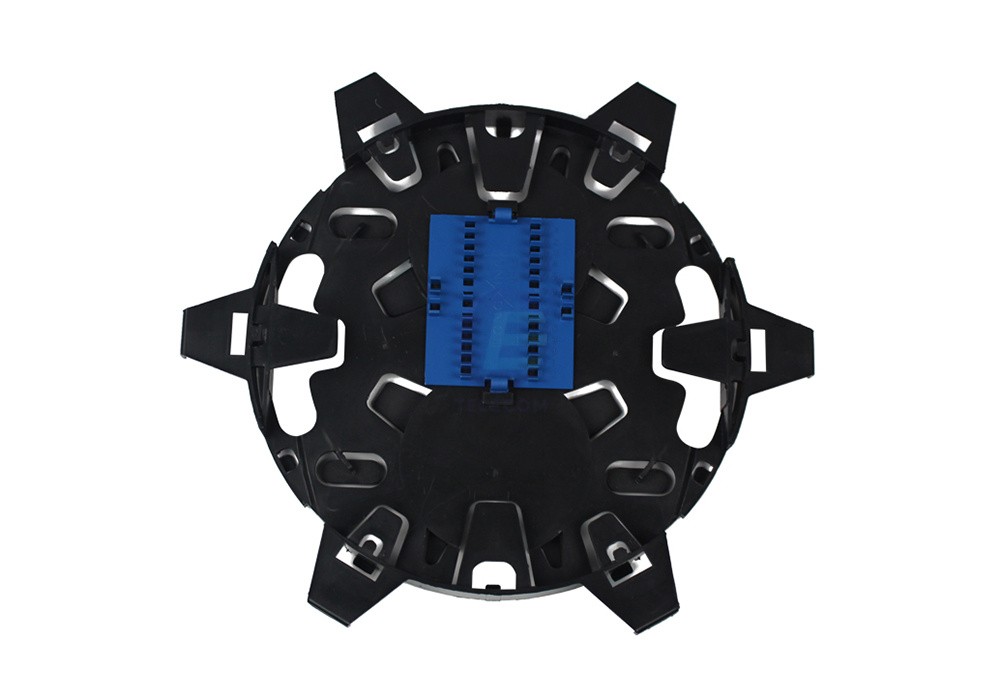

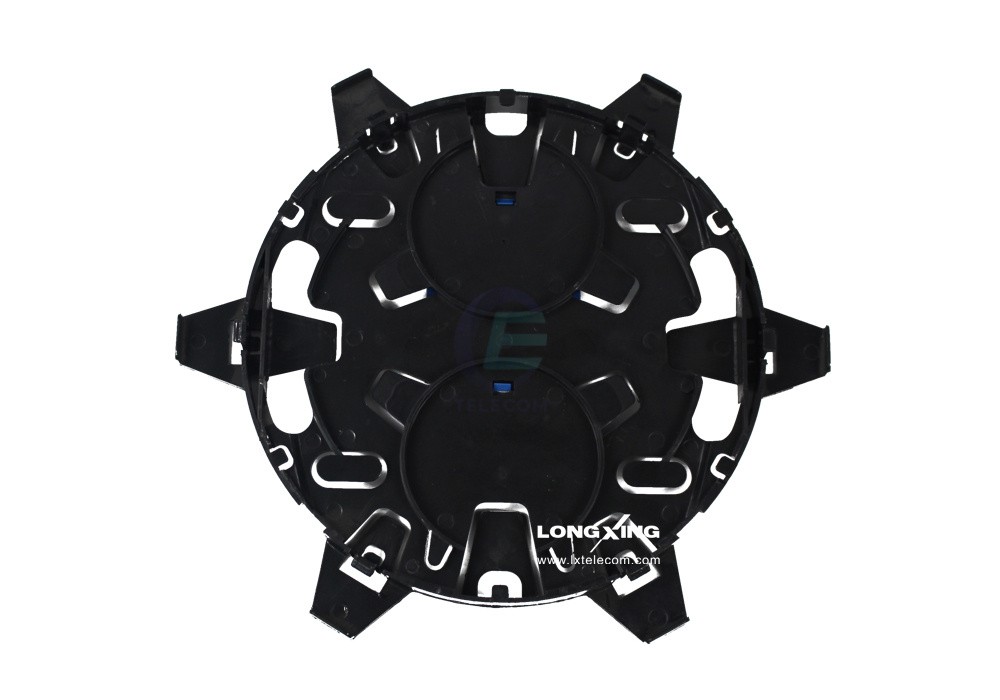

The round splice tray provides cable management, storage, and splicing for multiple fiber optic cables. The tray can accommodate up to 24 stranded or up to 24 ribbon fibers. The tray consists of a top and bottom side for routing and storing fiber cables. The top side provides storage for splice protectors and excess fiber, bottom side is used to reverse the direction of half the fibers.
Click:379

Service Online：

Product Details

Datasheet Download

Features:

Light weight plastic-molded tray

Round disk shape design to fit special requests

With fiber splice and storage function

For fusion splicing of optical fibers with large bent radius.


Specifications:

Material

ABS

Dimensions (Dia. x H)

Ø170mm x 10mm; Ø220 x 10mm

Max. Capacity

12FO/ 24FO
