Product Details
Datasheet DownloadFeatures:
• Made of top-quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying, solid structure and pleasing appearance.
• Fully enclosed standard frame

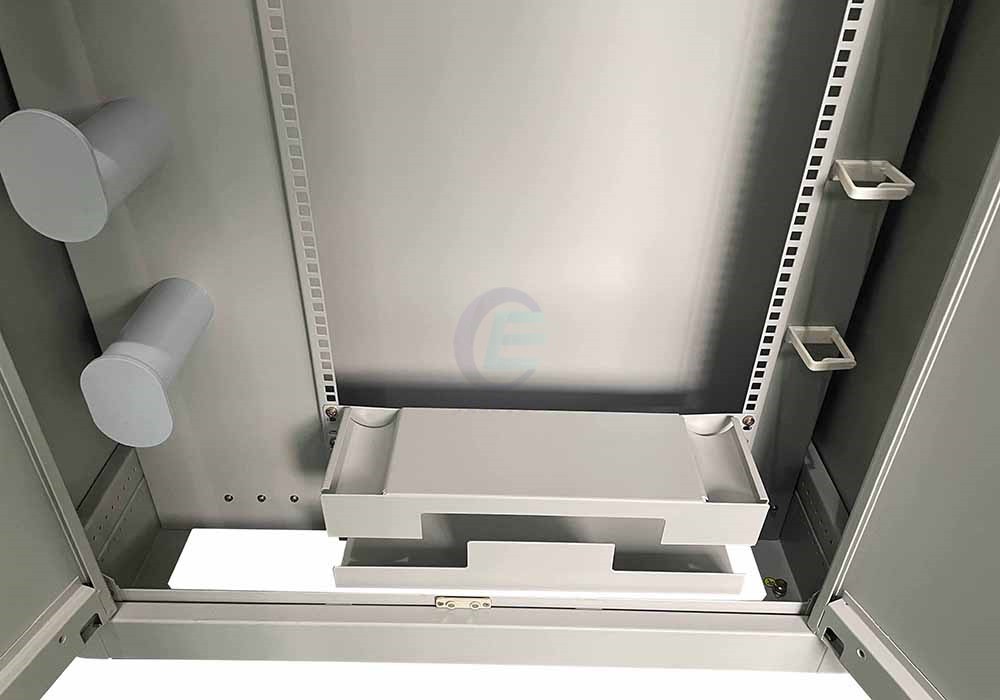

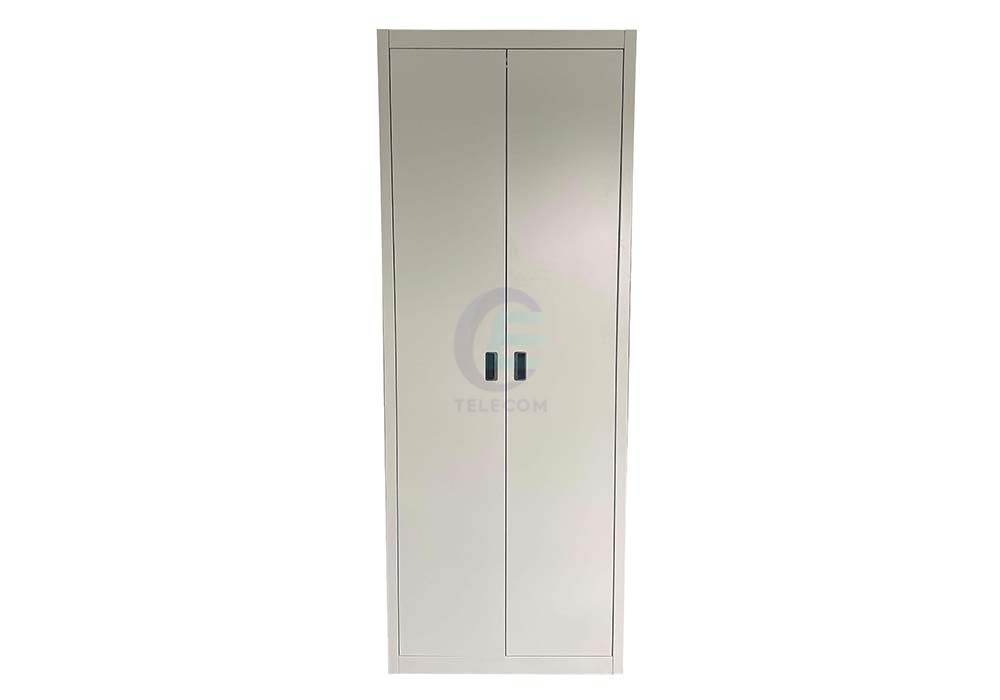

• Double-sided front door., which is highly convenient to manage the fiber cable
• Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances.
• Different height and width are available
Specifications:
|
Material: |
Cold roll steel/ Galvanized steel/ Stainless steel |
|
|
Dimensions: |
Height: |
2,000mm/ 2,200mm/ 2,600mm |
|
Width: |
840mm/ 900mm |
|
|
Depth: |
300mm |
|
|
Connector Type: |
FC/ SC/ LC |
|
|
Capacity: |
504 Ports/ 576 Ports/ 720 Ports |
|
|
Color: |
White/ Black/ Grey |
|
|
Working Temperature: |
-10℃~ +40℃ |
|
|
Storage Temperature: |
-25℃~ +55℃ |
|
|
Relative Humidity: |
≤85%(+30℃) |
|
